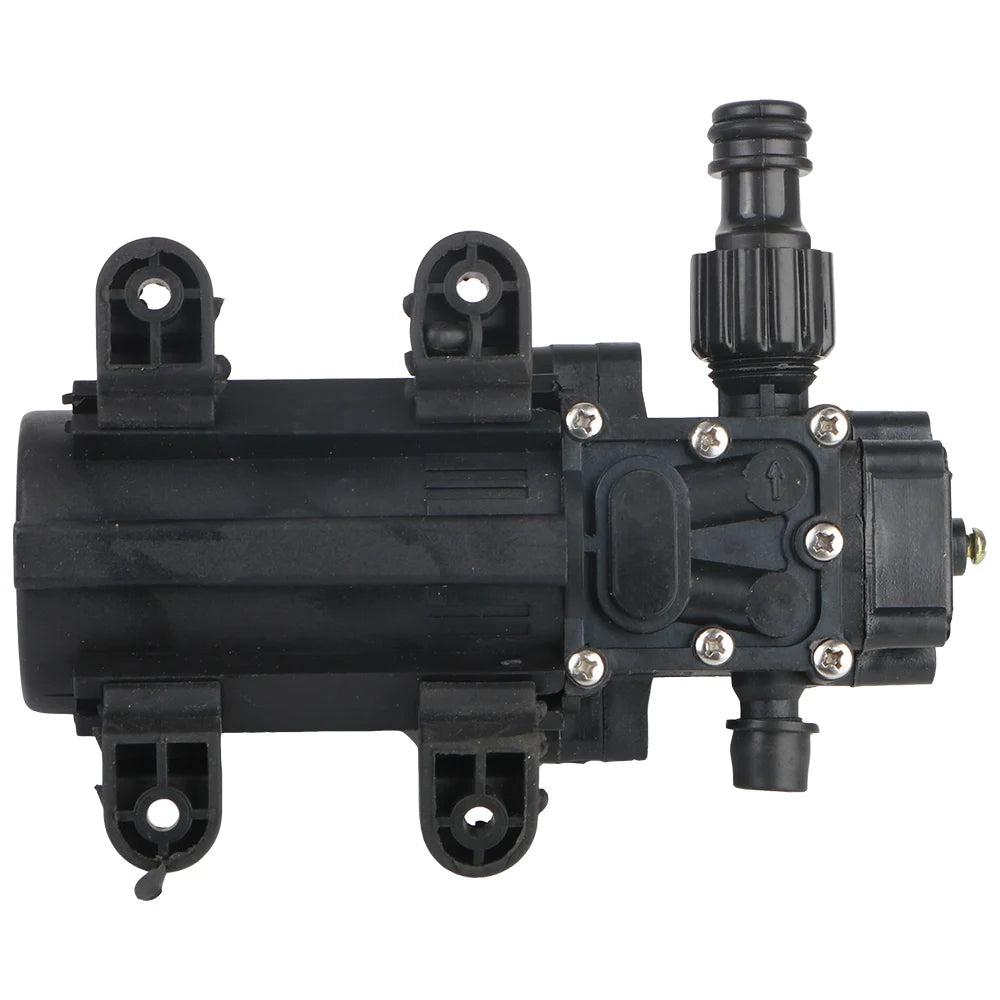

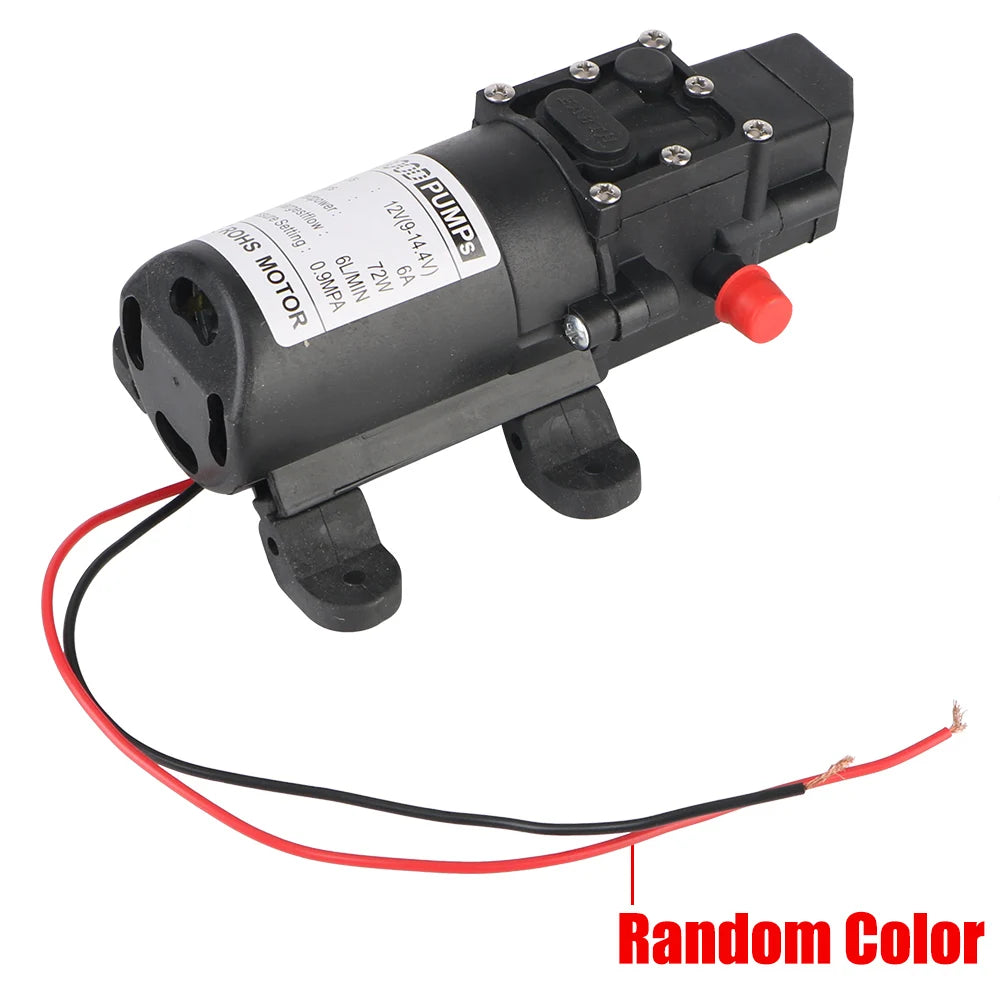

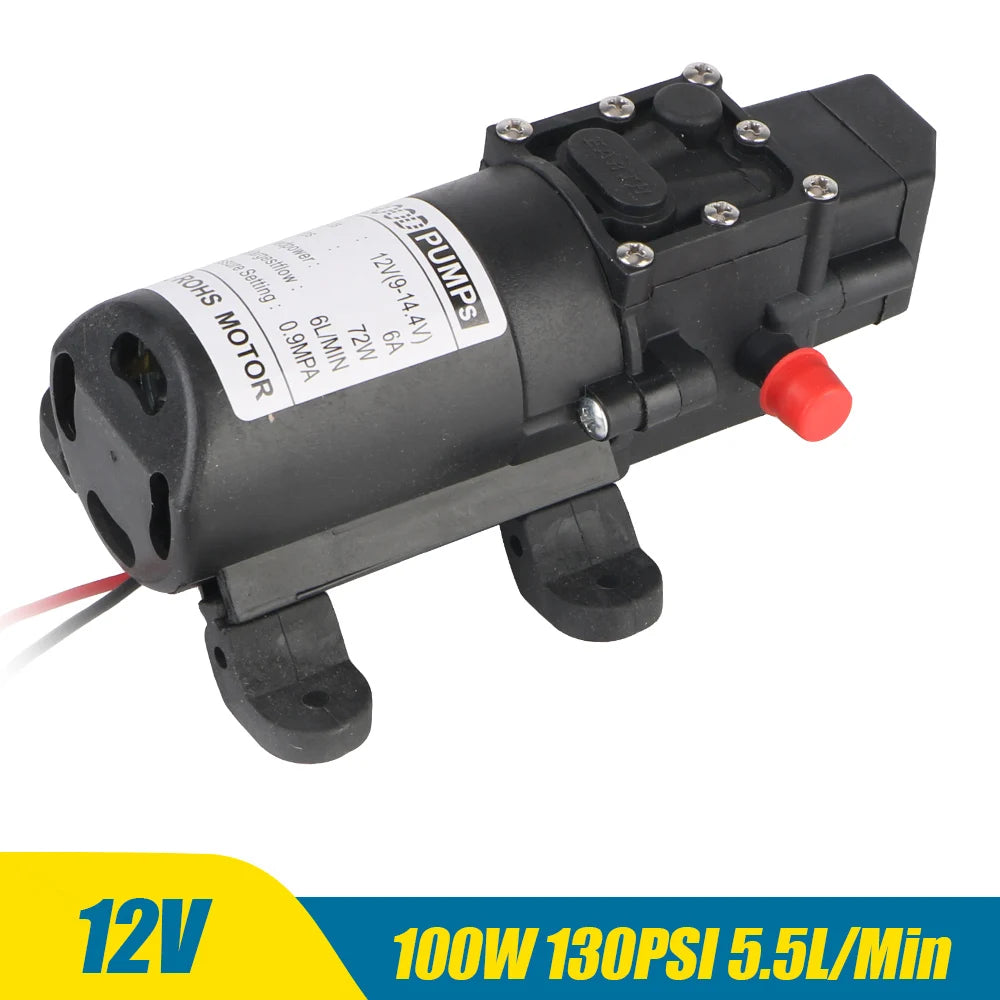

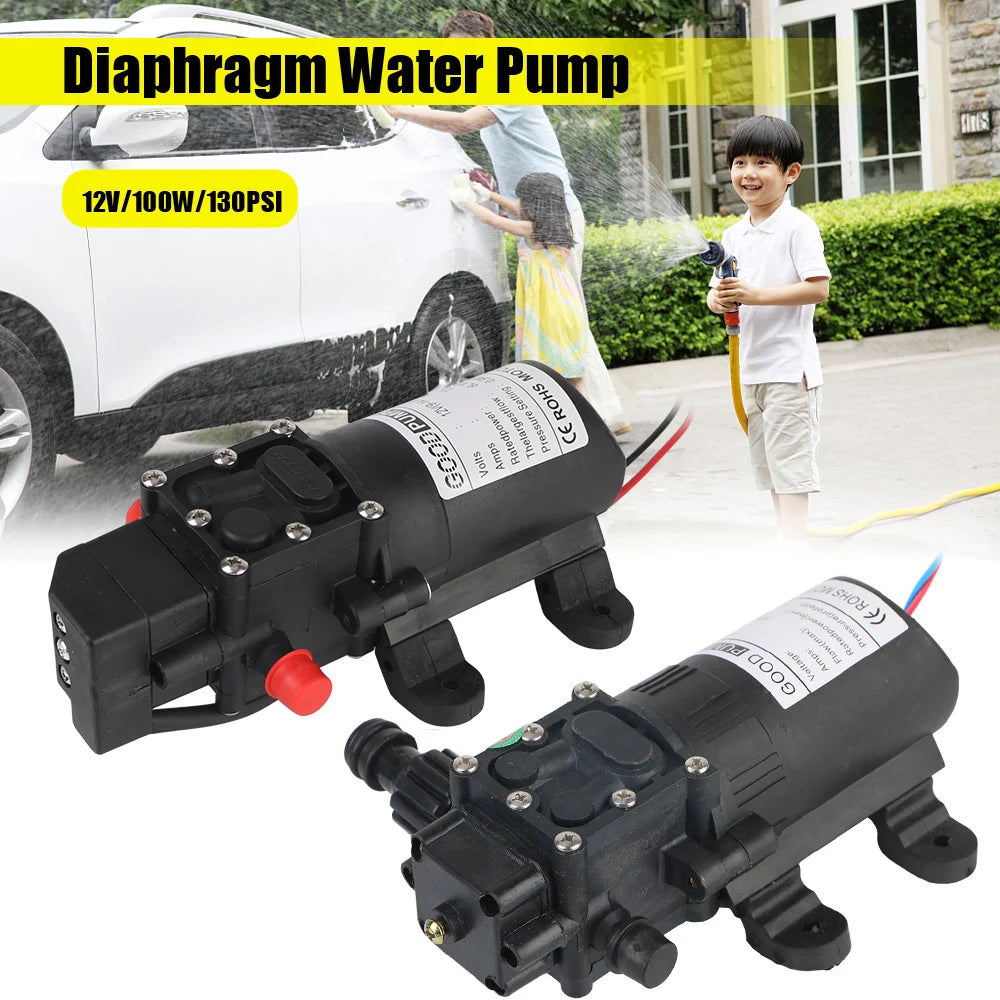

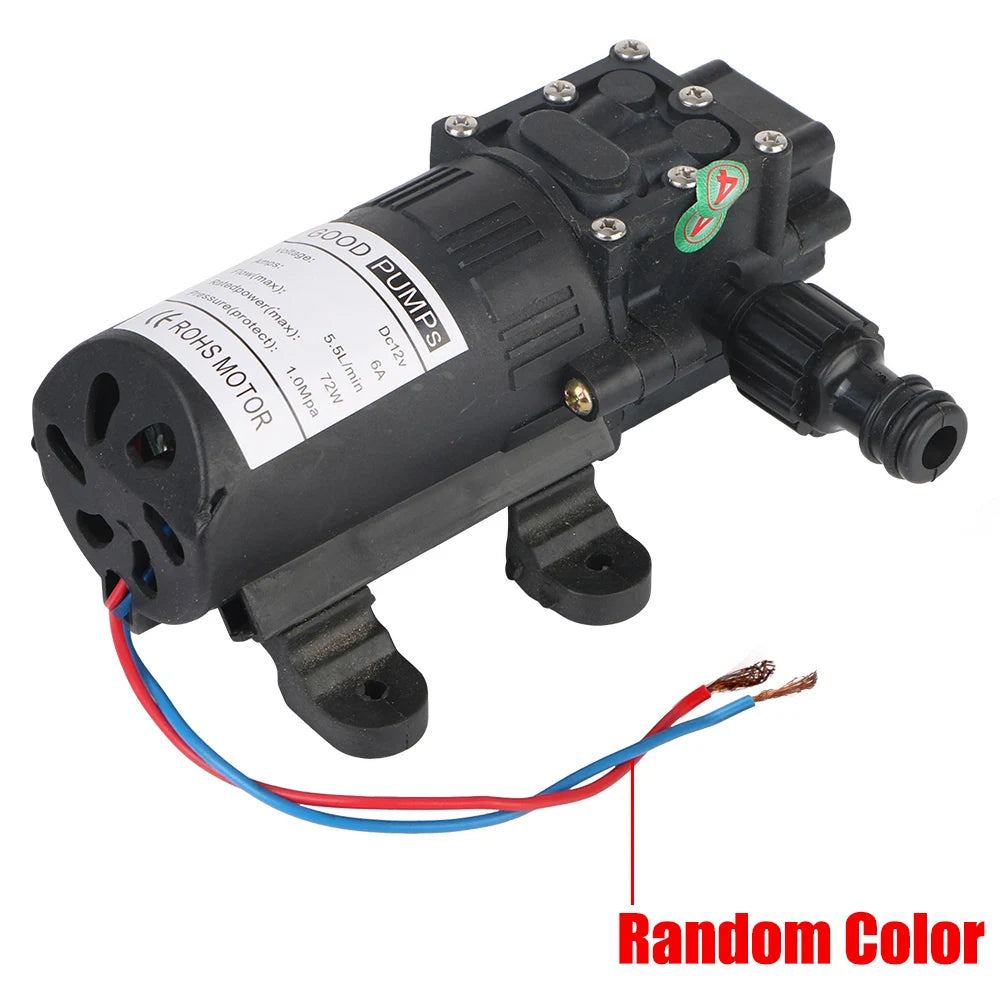

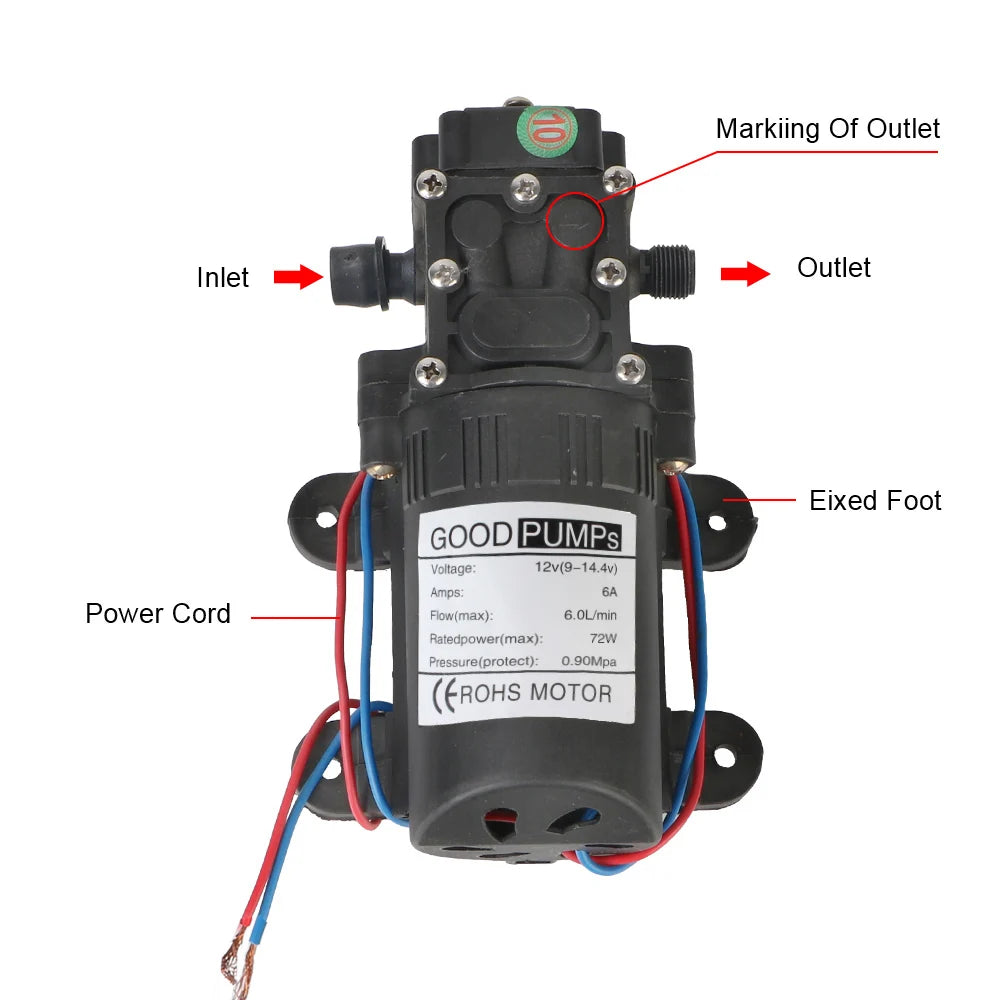

DP-537 12V Electric Diaphragm Water Pump

Power a wide range of spraying and water transfer applications with this DP-537 electric diaphragm water pump, designed to deliver high-pressure performance in a compact and durable design. With up to 130PSI pressure and a maximum flow rate of 5.5L/min, it is suitable for agricultural spraying, cleaning equipment, water systems and outdoor applications.

Featuring corrosion-resistant diaphragm construction, this pump is designed to handle various non-corrosive liquids while providing reliable operation. The self-priming diaphragm design combines the advantages of traditional pumps with improved pressure control and versatility.

Ideal for gardens, agricultural equipment, RVs, boats, vehicle cleaning systems and water treatment applications, this electric pump provides a practical solution where reliable water pressure is required.

Key Features

• DP-537 electric diaphragm water pump design
• Maximum pressure: 130PSI (approximately 9.0kg/cm²)
• Adjustable working pressure range: approximately 75–130PSI
• Maximum flow rate: 5.5L/min
• Self-priming pump design for convenient operation
• Corrosion-resistant diaphragm construction
• Resistant to oil, heat, acids, alkalis and chemical exposure
• Available 12V DC electric operation
• Model A with pressure switch:
• Voltage: DC 12V
• Current: 8A
• Maximum power: 100W
• Flow rate: 5.5L/min
• Pressure protection: 1.0MPa
• Model B with reflux switch:
• Voltage: DC 12V
• Current: 6A
• Maximum power: 72W
• Flow rate: 5.5L/min
• Pressure protection: 1.0MPa
• Suitable for agricultural spraying and garden irrigation
• Ideal for RVs, boats, special vehicles and cleaning systems
• Suitable for beverage equipment, carpet cleaning and water treatment applications
• Designed for liquids without oil, strong acids, alkalis or solid particles
• CE certified
• Battery not included

Package Includes

• 1 × DP-537 Diaphragm Water Pump
