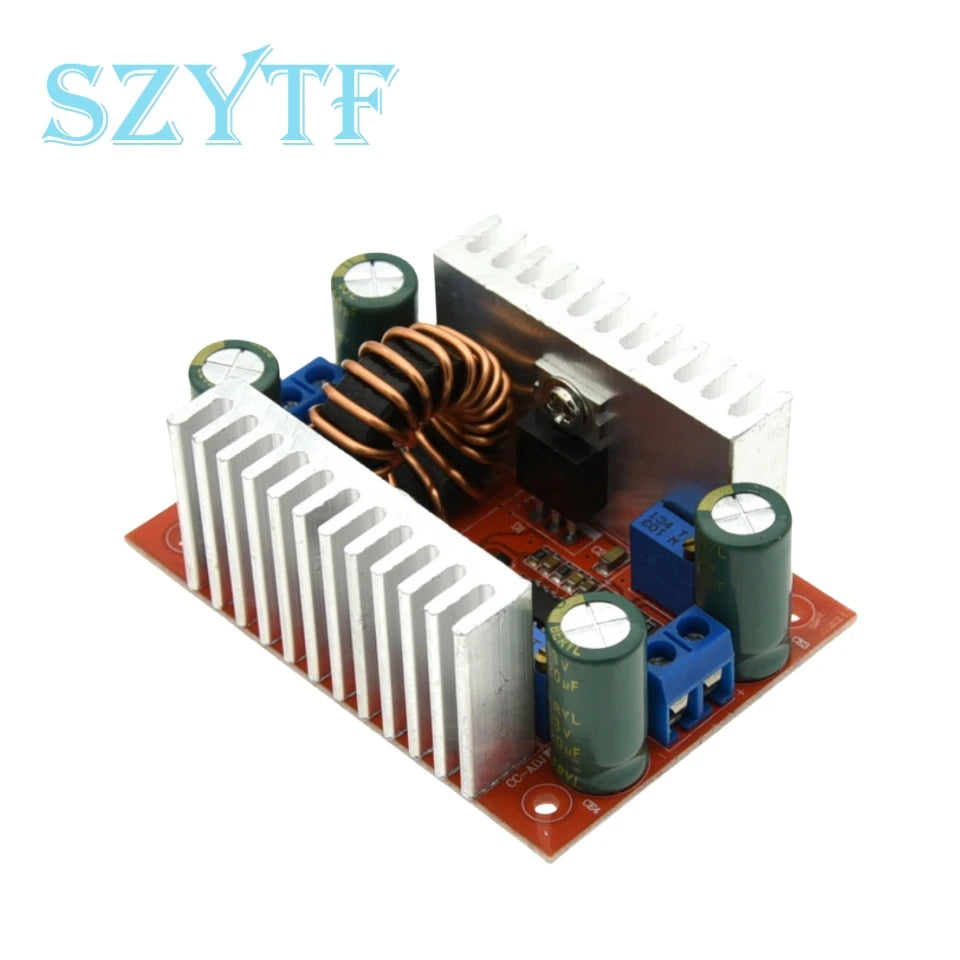

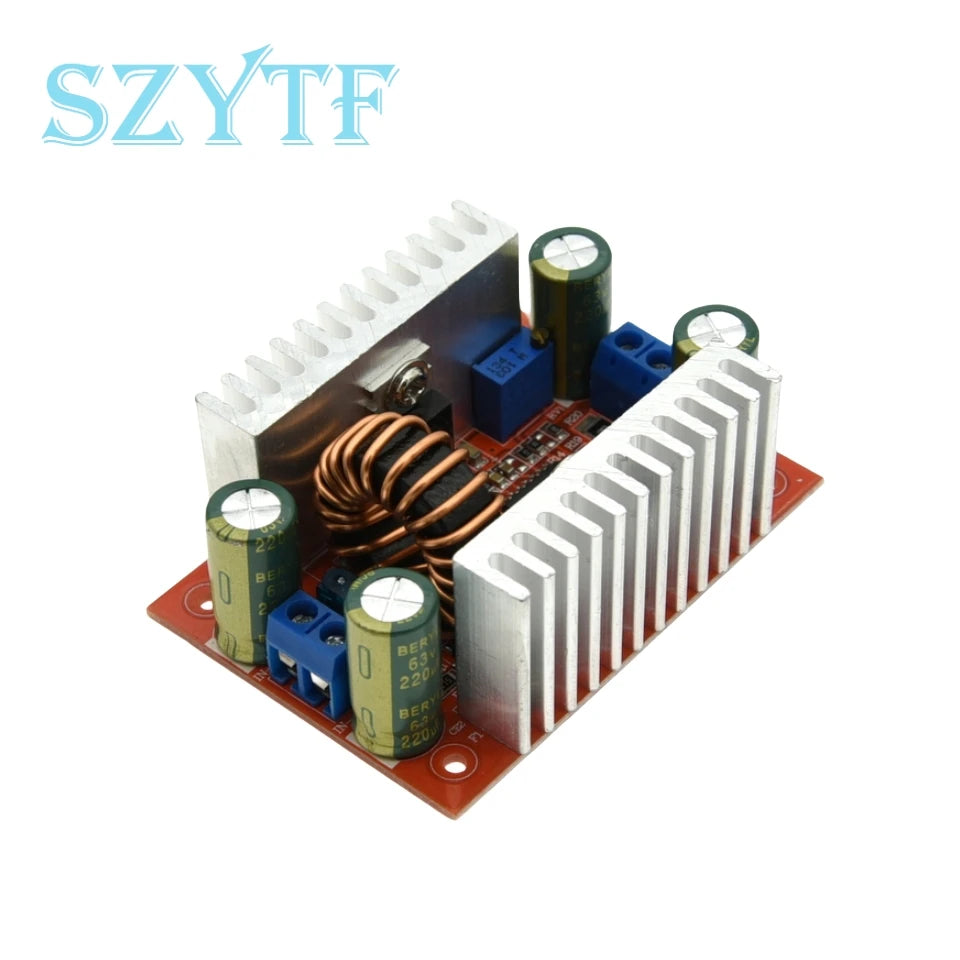

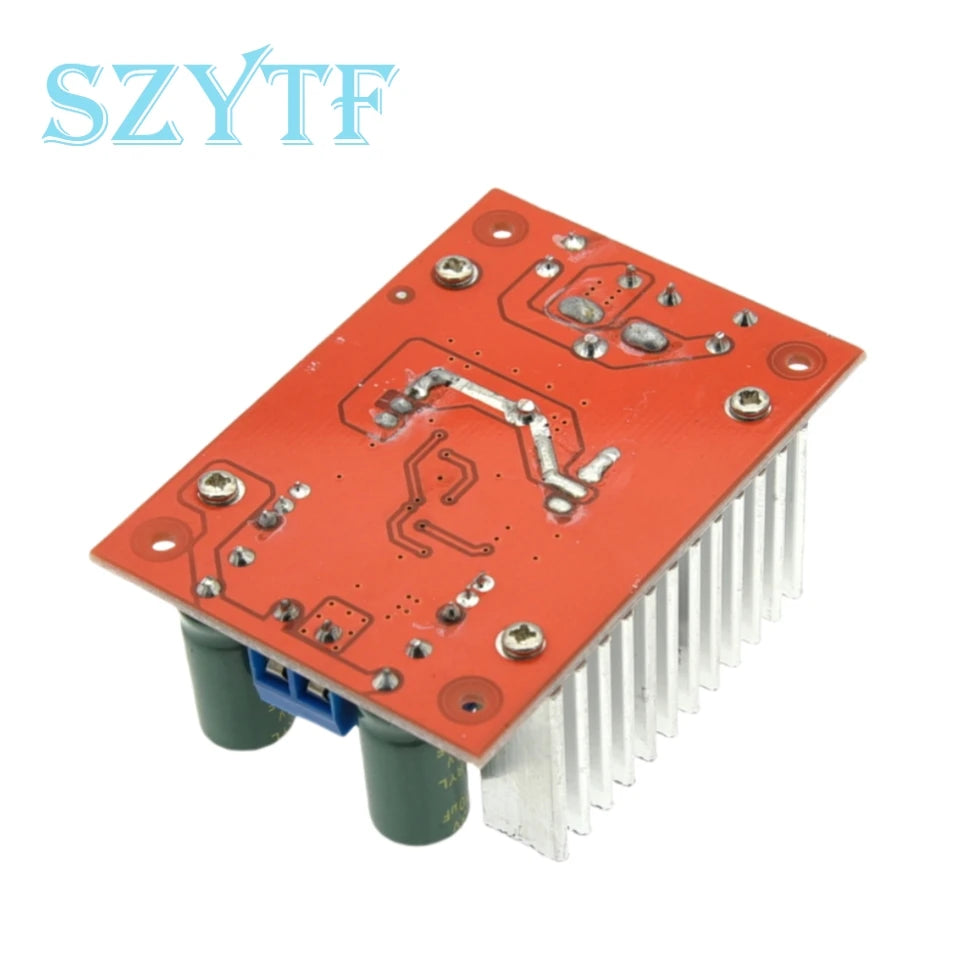

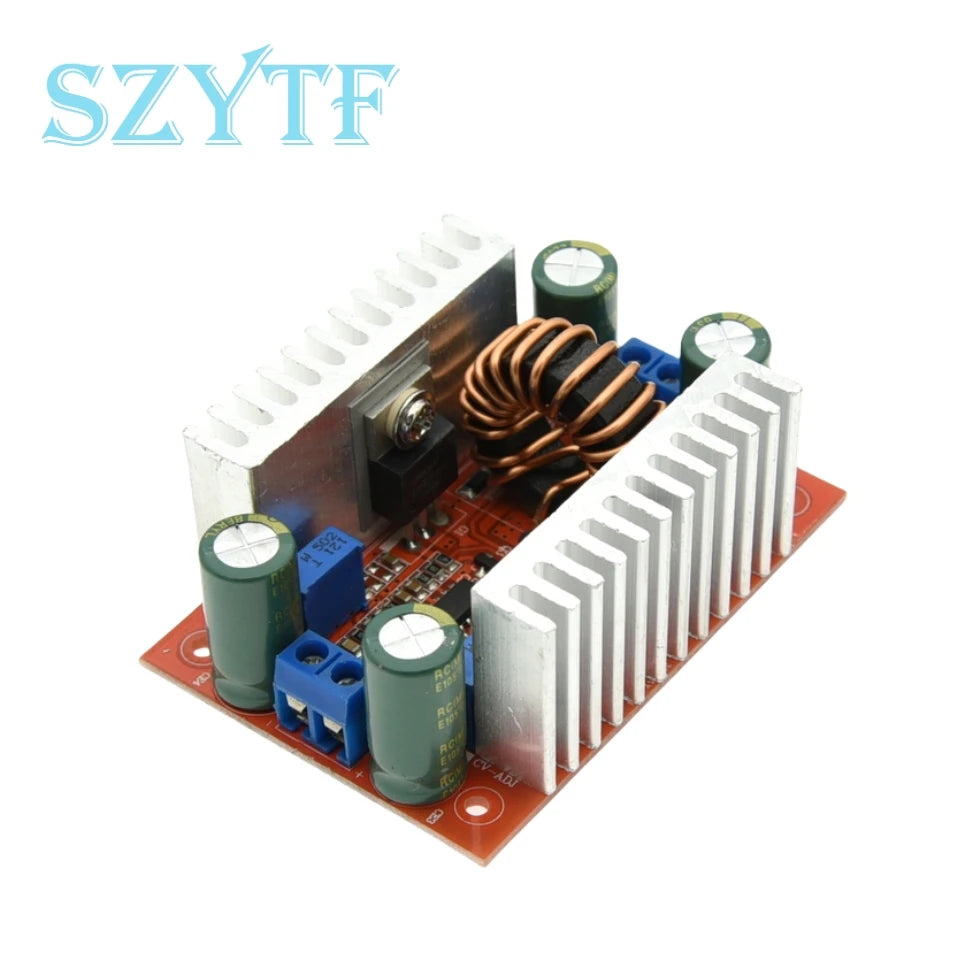

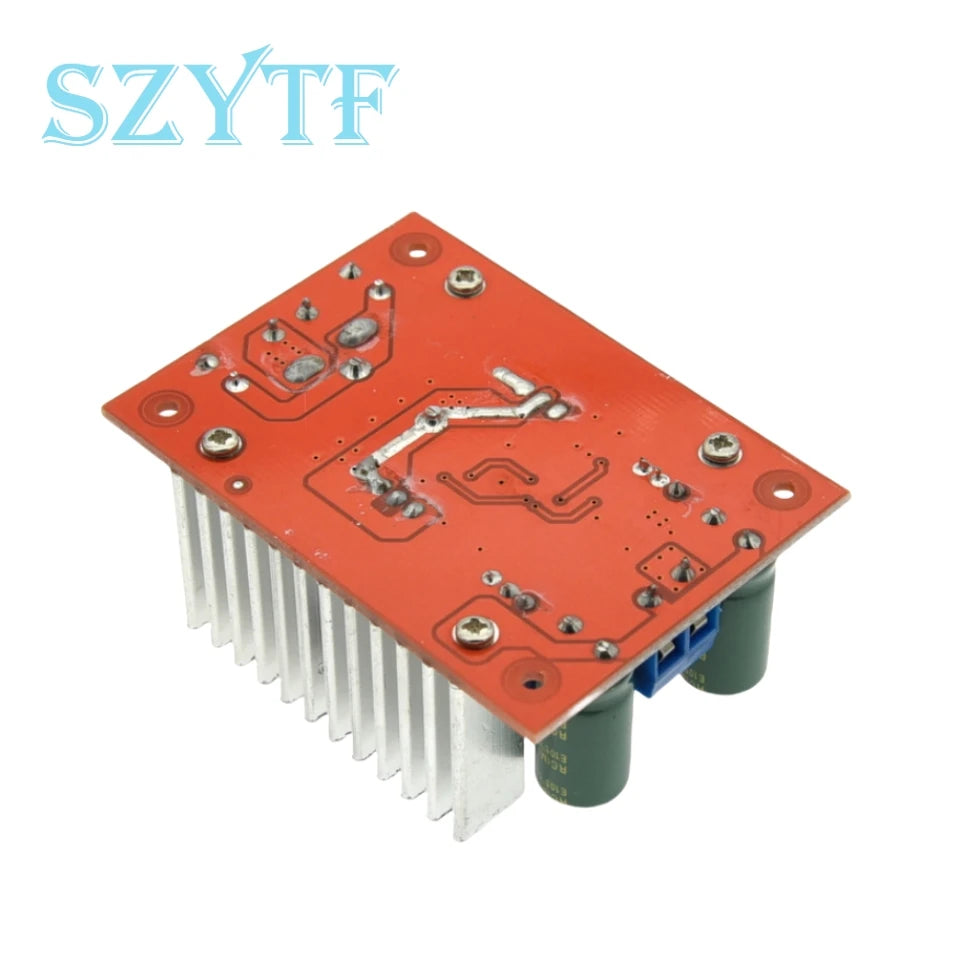

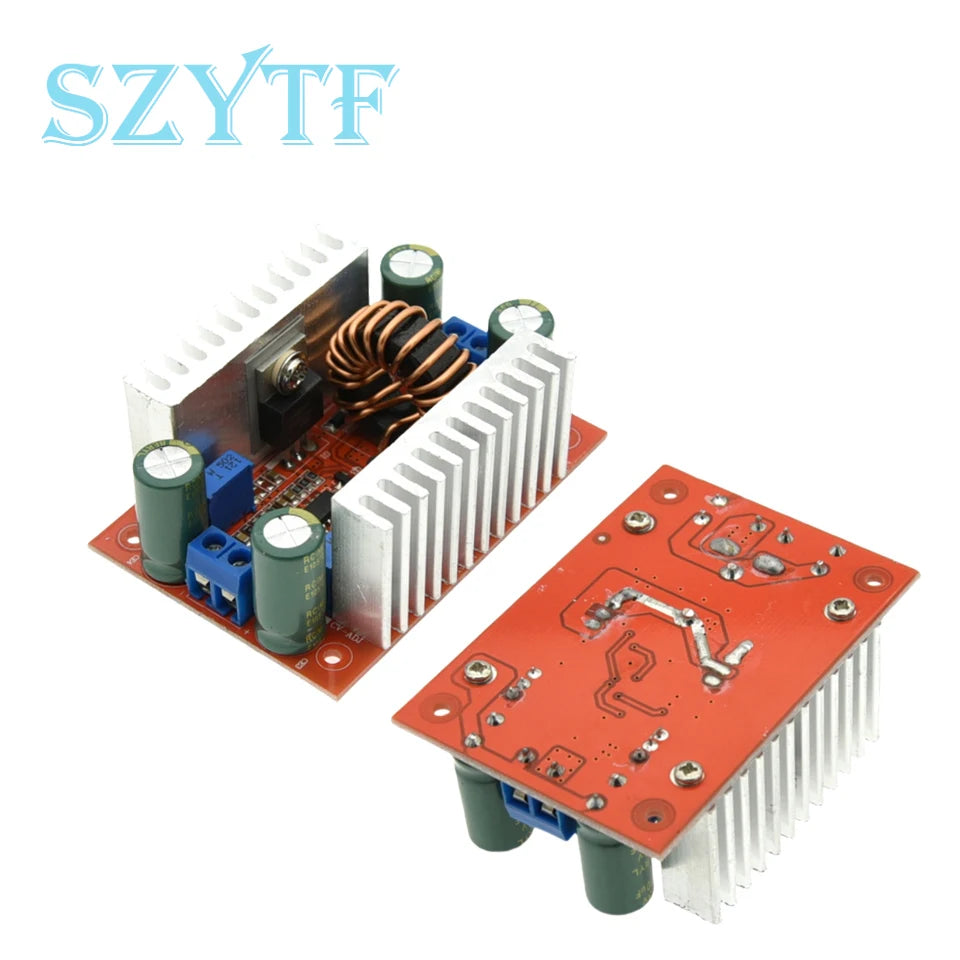

400W DC-DC Boost Converter Constant Voltage & Current Module

Power your electronic projects with this high-performance 400W DC-DC boost converter module. Designed to provide adjustable constant voltage and constant current output, it is ideal for battery charging, high-power LED drivers, solar applications, laboratory projects and DIY power supplies.

Supporting input voltages from 8.5V to 50V, the module delivers an adjustable output between 10V and 60V while achieving conversion efficiencies of up to 96%. Independent voltage and current adjustment controls allow precise configuration for a wide range of applications, including notebook power supplies, lithium battery charging and regulated DC power systems.

Featuring overcurrent protection and a compact design with mounting holes for secure installation, this boost converter is an excellent choice for electronics enthusiasts, engineers and professional system builders.

Important: This module does not include reverse polarity protection. Ensure the input polarity is correct before connecting power. Adequate cooling is recommended when operating at high current or power levels.

Key Features

• High-power non-isolated DC-DC boost converter module
• Adjustable constant voltage (CV) and constant current (CC) output
• Maximum output power: 400W
• Input voltage range: DC 8.5V–50V
• Adjustable output voltage: DC 10V–60V
• Adjustable constant current: 0.2A–12A
• Maximum input current: 15A
• Maximum output current: 12A (adequate cooling recommended above 7A)
• Conversion efficiency up to 96%
• Built-in overcurrent protection
• Operating frequency: 150kHz
• Operating temperature: -40°C to +85°C
• Four mounting holes for secure installation
• Suitable for battery charging, LED drivers, solar systems and DIY regulated power supplies

Applications

• Adjustable laboratory power supplies
• Lithium battery charging systems
• Solar power voltage regulation
• High-power LED lighting
• Notebook power supplies
• Automotive DC power systems
• DIY electronics and embedded projects

Package Includes

• 1 × 400W DC-DC Boost Converter Module
