ESP32-C6 IoT Development Board with 1.47” LCD Display

Build powerful IoT applications with the ESP32-C6 Development Board featuring a vibrant 1.47-inch LCD display, integrated Wi-Fi 6, Bluetooth 5 Low Energy and a high-performance RISC-V processor. Designed for makers, developers and embedded system enthusiasts, it provides an excellent platform for creating smart devices, graphical interfaces and connected automation projects.

The onboard colour LCD is ideal for displaying custom interfaces, dashboards and animations using GUI frameworks such as LVGL. Multiple I/O interfaces, USB connectivity and a built-in microSD card slot allow flexible hardware expansion for a wide variety of development applications.

Whether you’re developing smart home devices, industrial monitoring systems, portable displays or IoT prototypes, this compact development board delivers reliable performance and extensive connectivity in a developer-friendly design.

Key Features

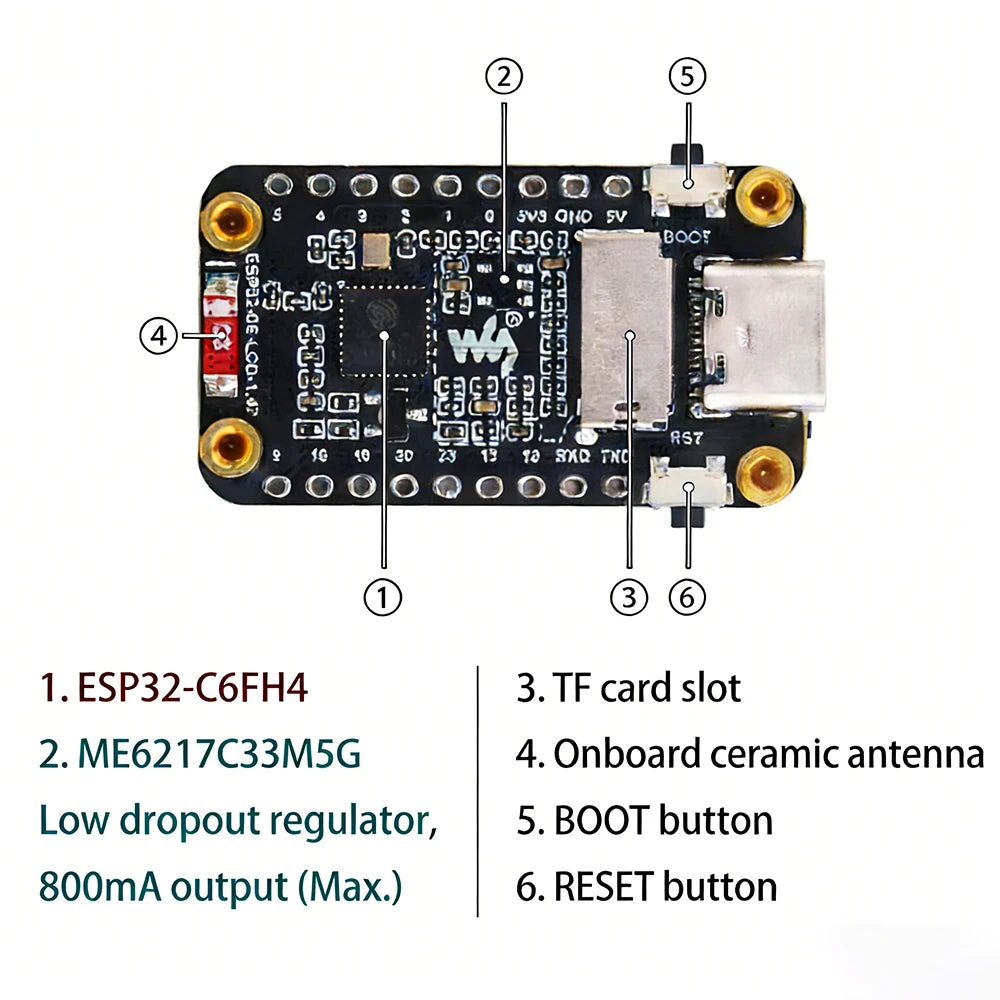

• ESP32-C6 microcontroller development board
• Built-in 2.4GHz Wi-Fi 6 (802.11 b/g/n)
• Bluetooth 5 Low Energy (BLE 5) support

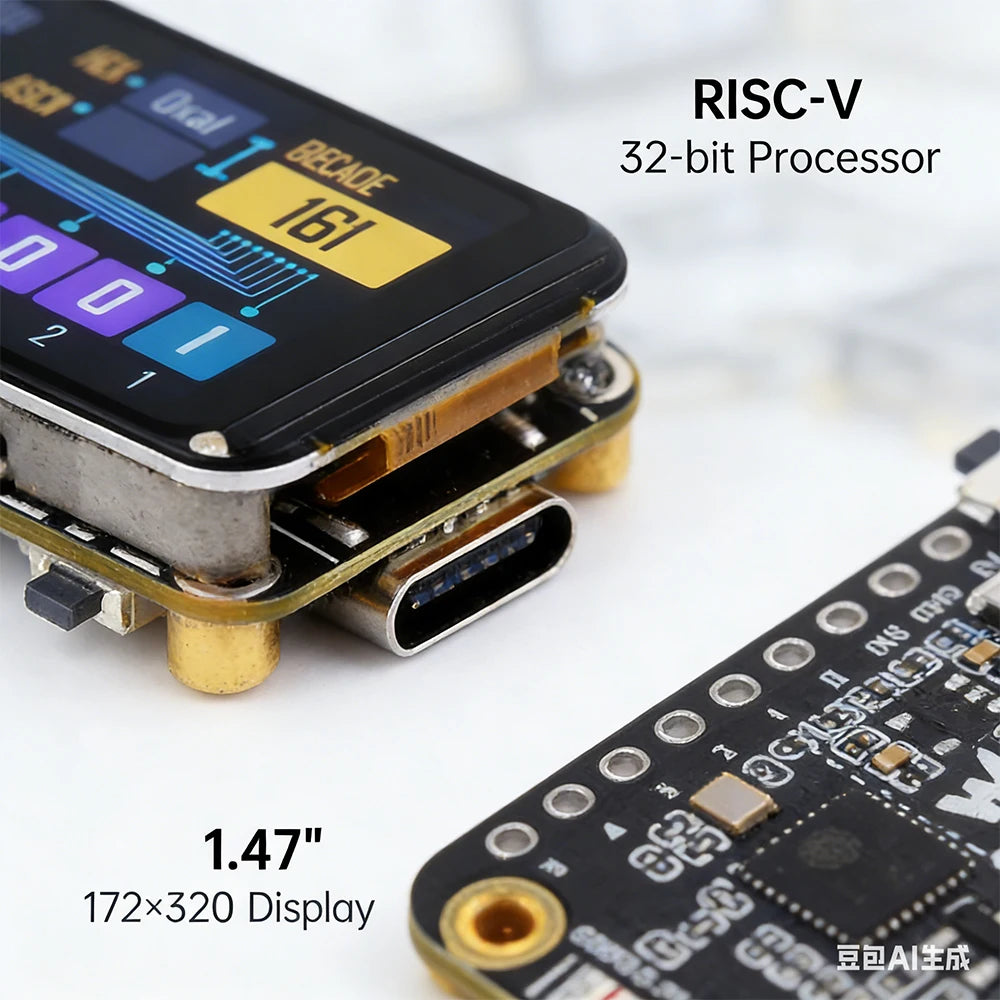

• High-performance 32-bit RISC-V processor up to 160MHz
• Low-power RISC-V coprocessor up to 20MHz
• Integrated 1.47-inch full-colour LCD display
• LCD resolution: 172 × 320 pixels
• Supports up to 262K display colours
• Compatible with Arduino development environments
• Suitable for LVGL graphical user interface projects
• 4MB onboard Flash memory
• 320KB ROM, 512KB HP SRAM and 16KB LP SRAM
• Full-speed USB interface for programming and communication
• Built-in microSD (TF) card slot for external storage
• Integrated RGB LED for status indication and visual effects
• Multiple GPIO and peripheral interfaces for hardware expansion
• Low-power operating modes for energy-efficient applications
• Compact design for embedded and portable projects
• Ideal for IoT, smart home, HMI, automation and embedded development
• Note: LCD display is non-touch

Package Includes

• 1 × ESP32-C6 IoT Development Board with 1.47” LCD Display
