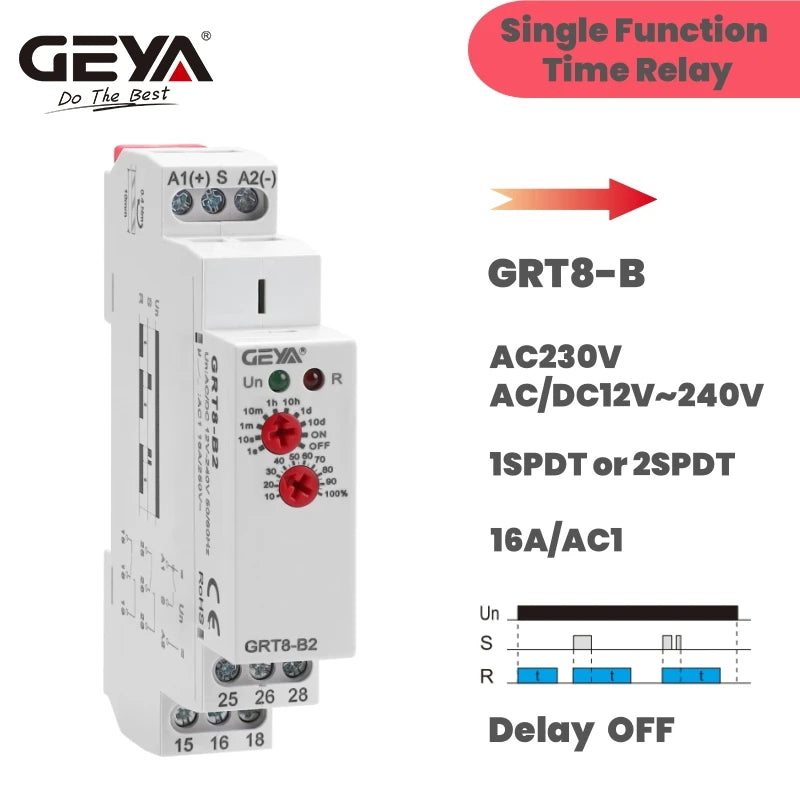

GEYA GRT8-B Off Delay Time Relay

Automate electrical switching operations with the GEYA GRT8-B Off Delay Time Relay, a versatile DIN rail mounted timer module designed for precise delayed power-off control. This electronic time relay allows connected devices to continue operating for a preset period after the control signal is removed, making it ideal for applications requiring controlled shutdown timing.

Supporting a wide voltage range of AC/DC 12–240V or AC230V versions, the GRT8-B provides flexible installation options for industrial, commercial and automation systems. The adjustable time range from 0.1 seconds up to 10 days allows precise control for various electrical applications.

Featuring LED status indication, reliable relay contacts and a compact 18mm single-module DIN rail design, this timer relay is suitable for control panels, automation systems, pumps, fans, heating equipment and other general-purpose electrical applications.

Key Features

• GEYA GRT8-B off delay time relay module
• Delayed OFF switching function

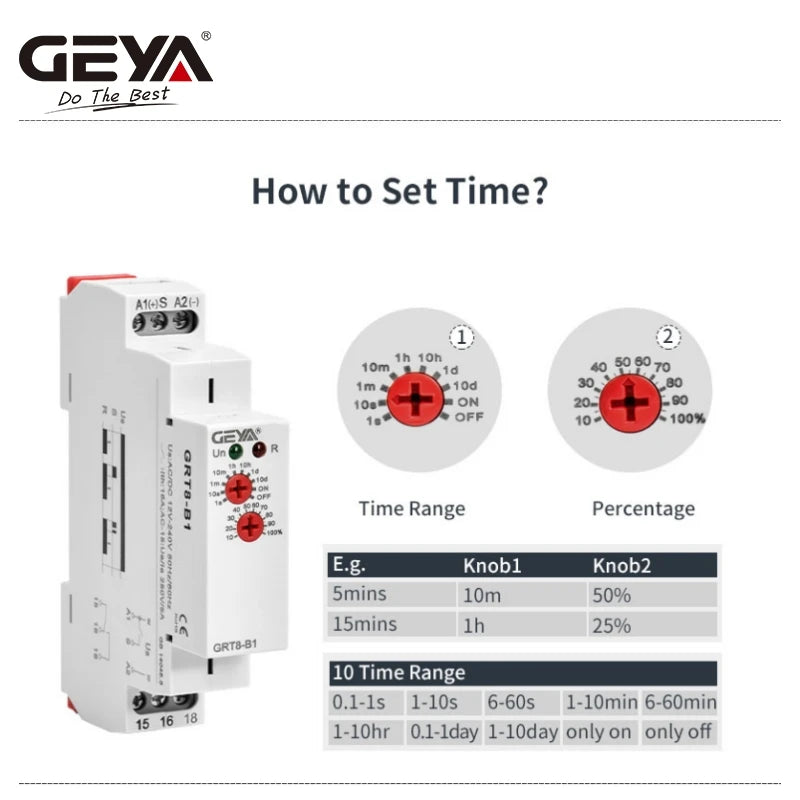

• Adjustable time range:
  • 0.1 seconds–10 days
• Multiple timing ranges:
  • 0.1–1s
  • 1–10s
  • 6–60s
  • 1–10min
  • 6–60min
  • 1–10hr
  • 0.1–1 day
  • 1–10 days
  • ON mode
  • OFF mode
• Wide voltage compatibility:
  • AC/DC 12–240V
  • AC230V
• Rated current: 16A AC1
• Frequency: 50/60Hz
• Output contact options:
  • 1SPDT (1NO + 1NC)
  • 2SPDT (2NO + 2NC)
• LED relay status indicator
• Compact 18mm DIN rail mounting design
• Suitable for electrical control cabinets and automation systems
• Reliable sealed relay construction
• CE, CB and RoHS certified

Applications

• Pump shutdown delay control
• Fan timing systems
• Heating equipment control
• Industrial automation
• Electrical control panels
• Lighting control systems
• General-purpose switching applications

Package Includes

• 1 × GEYA GRT8-B Off Delay Time Relay Module
