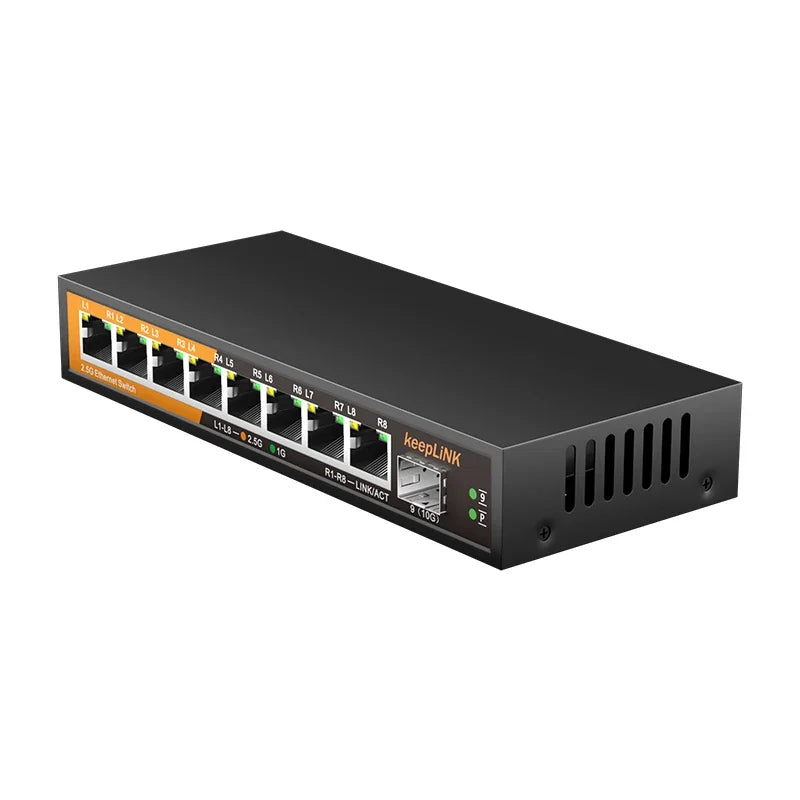

KeepLiNK 9-Port 2.5G Multi-Gigabit Ethernet Switch

Expand a wired network with the KeepLiNK KP-9000-9XH-X unmanaged Multi-Gigabit Ethernet switch, designed to provide high-speed connectivity without requiring software installation or manual configuration.

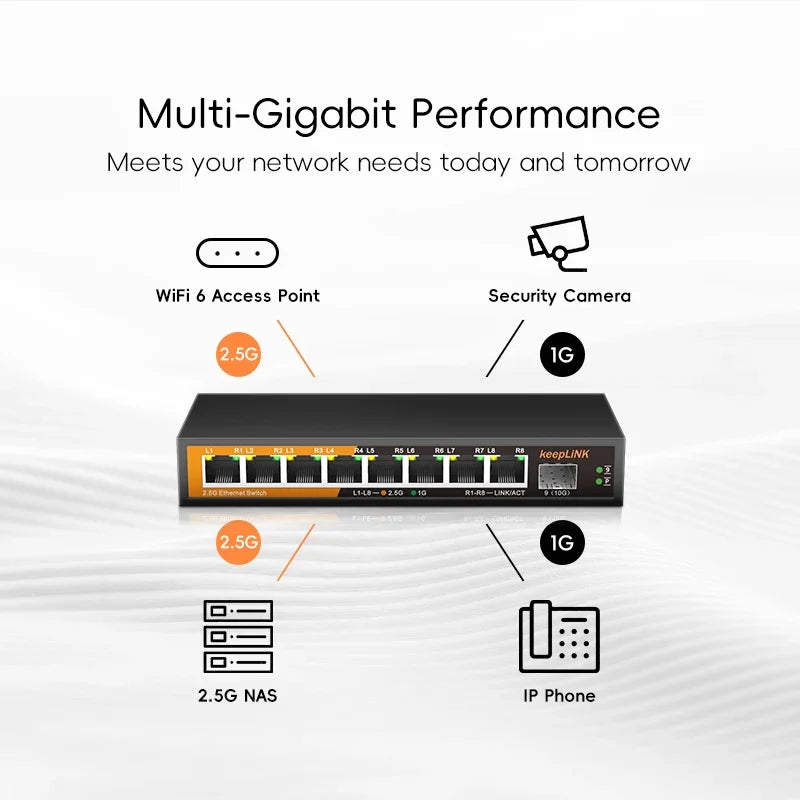

The switch features eight 2.5Gb RJ45 Ethernet ports capable of automatically supporting compatible 1G and 2.5G connections, together with one 10G SFP+ uplink port for high-bandwidth network expansion. Its non-blocking switching architecture and 60Gbps switching capacity help maintain efficient data transfer across connected devices.

Built in a compact metal enclosure, the switch can be placed on a desktop or mounted to a wall. Fanless cooling enables quiet operation, while per-port LED indicators provide convenient monitoring of connection status and speed. Support for Jumbo Frames, IEEE 802.3az Energy Efficient Ethernet and traffic prioritization makes it suitable for home offices, business networks, workstations, servers and other demanding wired-network environments.

Key Features

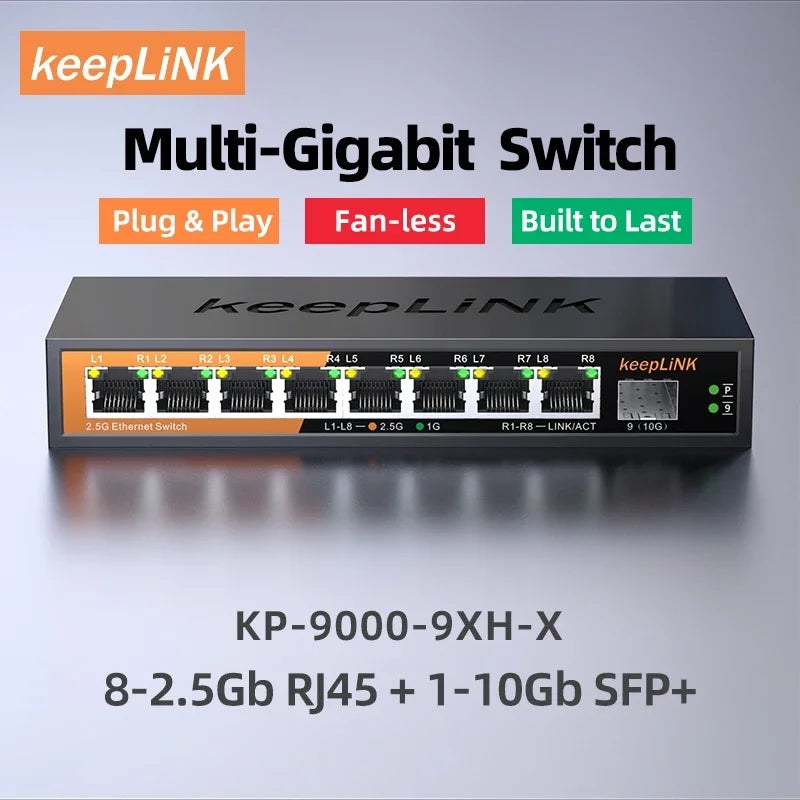

• KeepLiNK model KP-9000-9XH-X
• Unmanaged Multi-Gigabit Ethernet switch
• 9 network ports in total
• 8 × 2.5Gb RJ45 Ethernet ports
• RJ45 ports support compatible 1G / 2.5G connections
• 1 × 10G SFP+ uplink port
• SFP+ port supports compatible 1G / 2.5G / 10G connections according to supplier specifications
• Maximum transmission rate: up to 10Gbps
• Switching capacity: 60Gbps
• Packet forwarding rate: 44.64Mpps
• 8.1MB buffer
• 4K MAC address table
• Supports Jumbo Frames up to 10K bytes
• Supports full-duplex and half-duplex communication
• Auto MDIX/MDI-X support
• IEEE 802.3az Energy Efficient Ethernet support
• 802.1p traffic prioritization support
• Supplier-listed VLAN support
• Non-blocking switching architecture

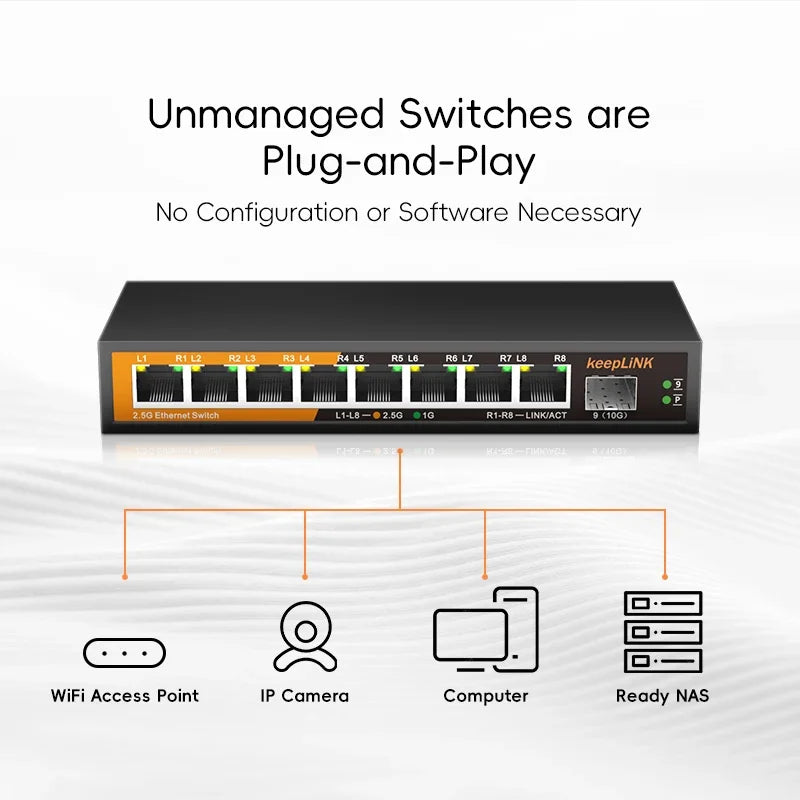

• Plug-and-play operation with no software configuration required
• Per-port LED indicators for activity and connection speed
• Fanless cooling for quiet operation

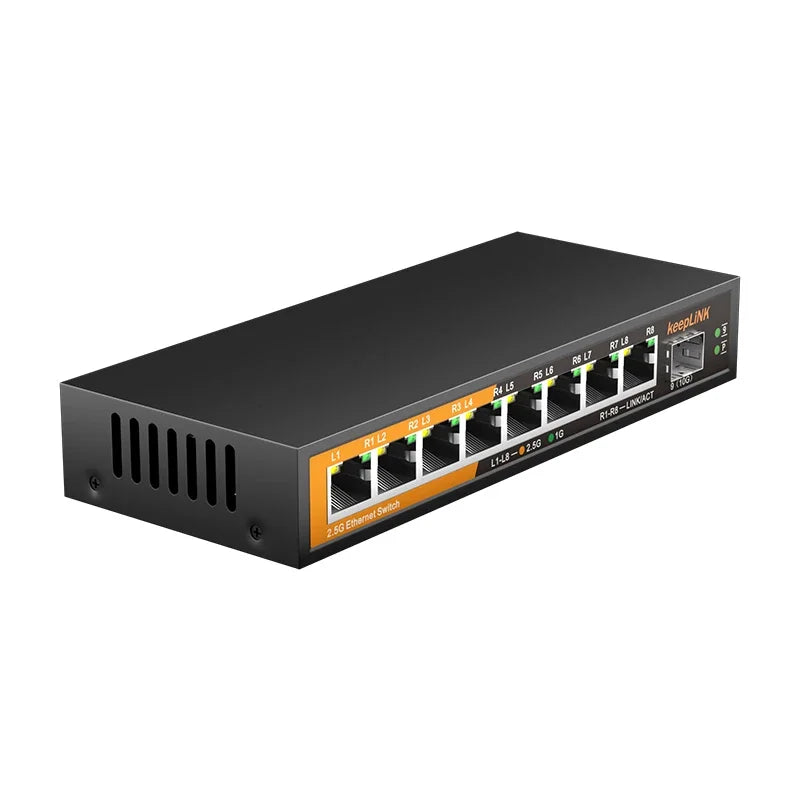

• Durable metal enclosure
• Suitable for desktop or wall-mounted installation

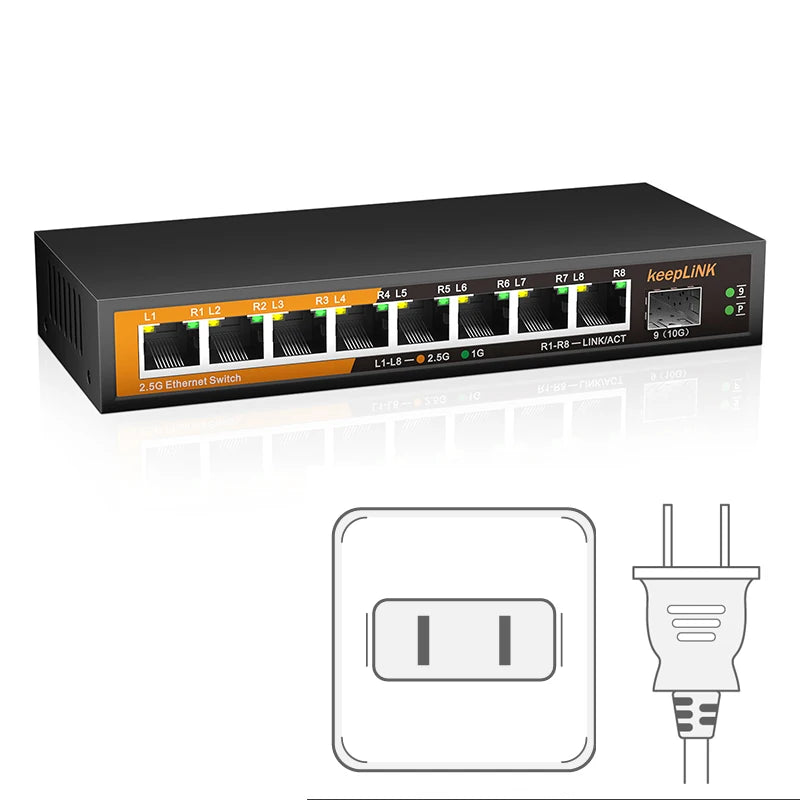

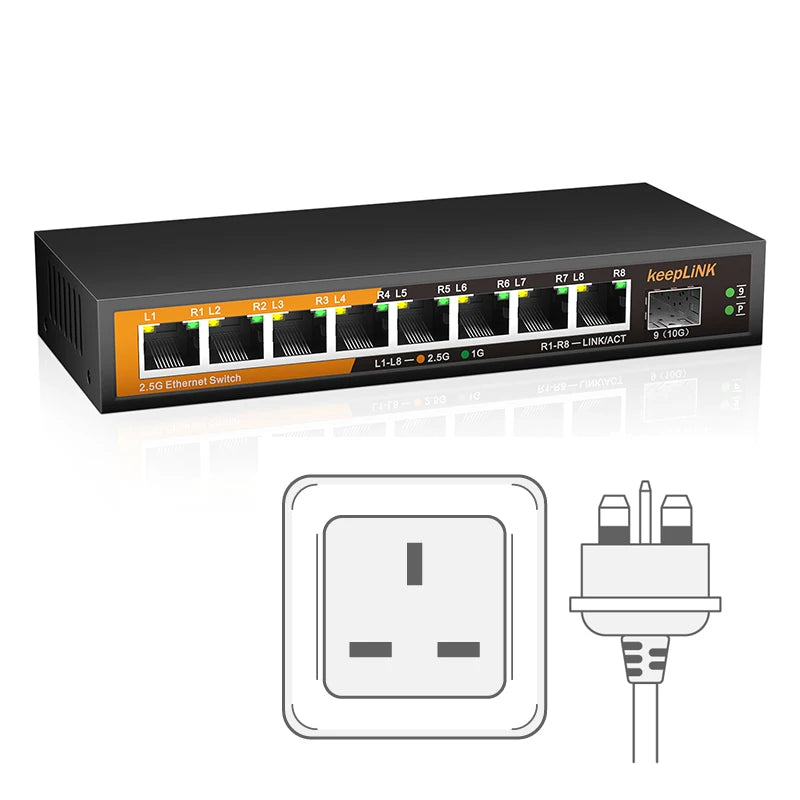

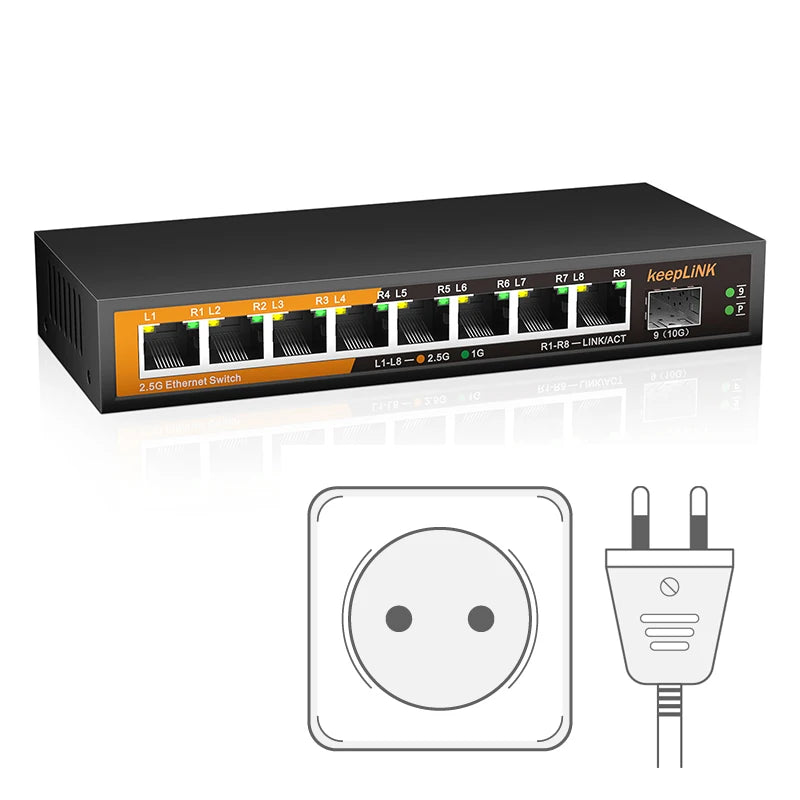

• Input voltage: 12V DC
• Total power consumption: less than 10W
• Forwarding delay: less than 10μs
• Operating temperature: -10°C to +55°C
• Storage temperature: -40°C to +70°C

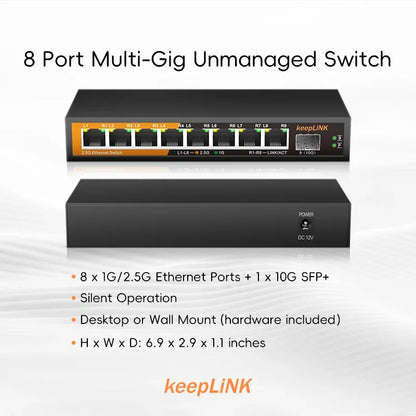

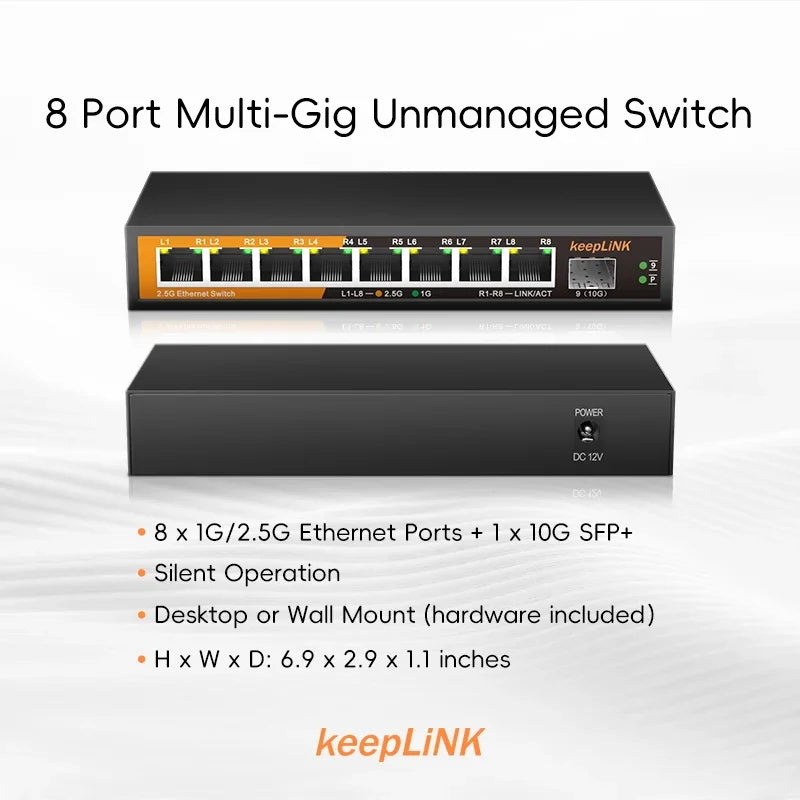

• Approximate dimensions: 175 × 73 × 28mm
• Approximate weight: 0.3kg
• CE, FCC and RoHS certified

Package Includes

• 1 × KeepLiNK KP-9000-9XH-X Multi-Gigabit Ethernet Switch

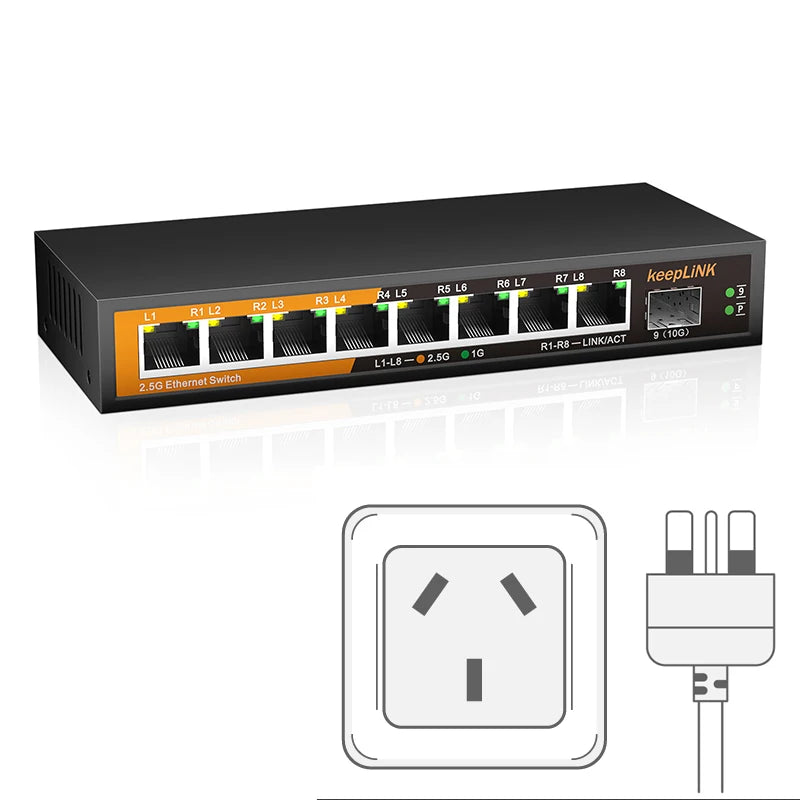

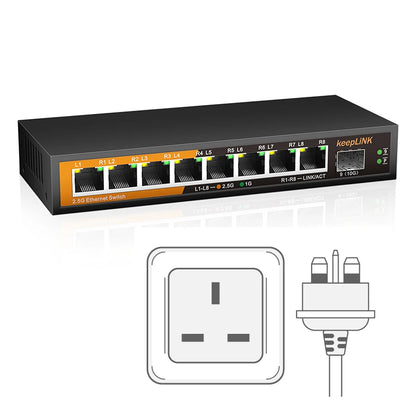

• 1 × Power Adapter
• 1 × Wall-Mount Kit
