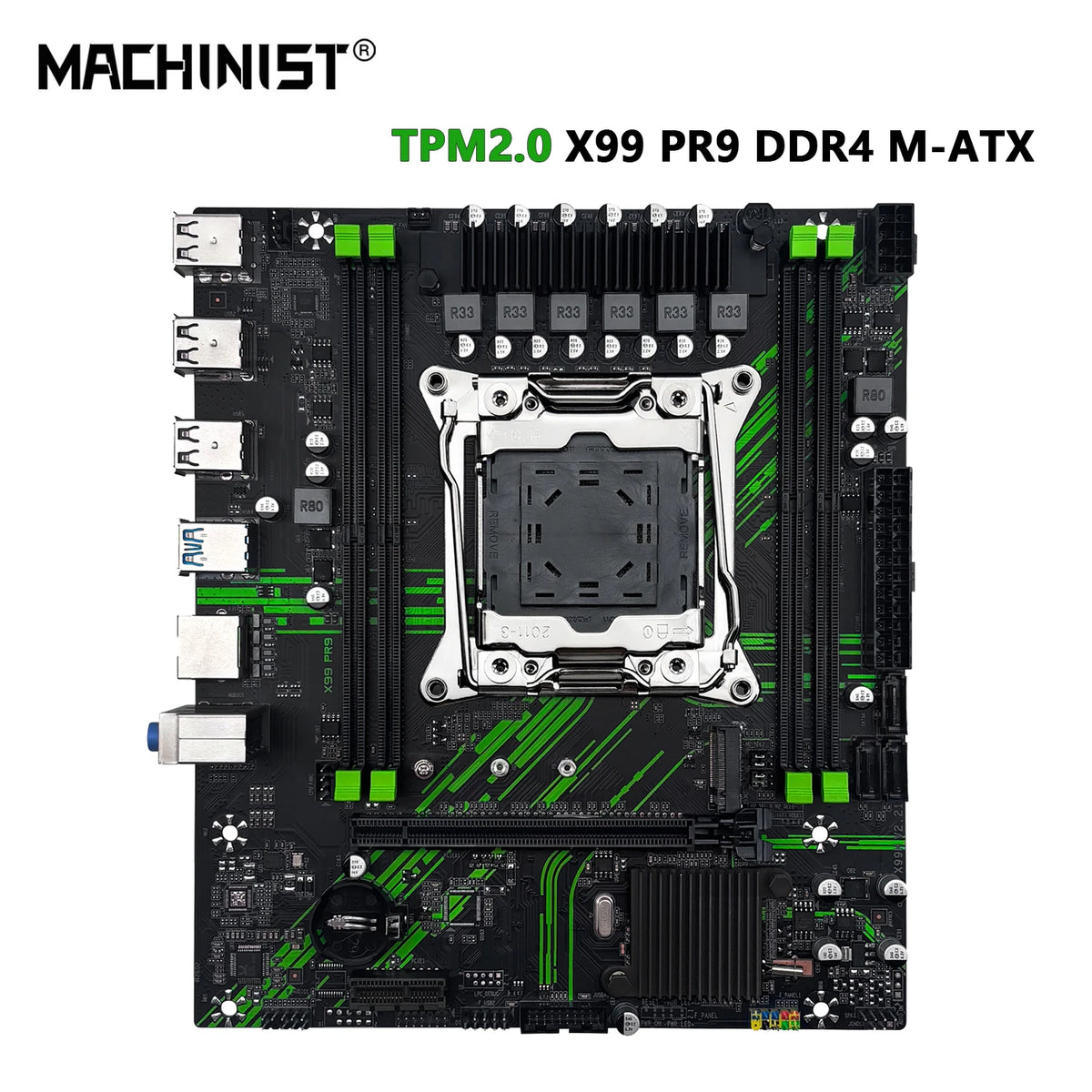

MACHINIST X99 PR9 LGA 2011-3 DDR4 Motherboard

Build or upgrade a compatible LGA 2011-3 desktop system with the MACHINIST X99 PR9 motherboard, designed for selected Intel Xeon E5 V3 and V4 processors and DDR4 memory configurations.

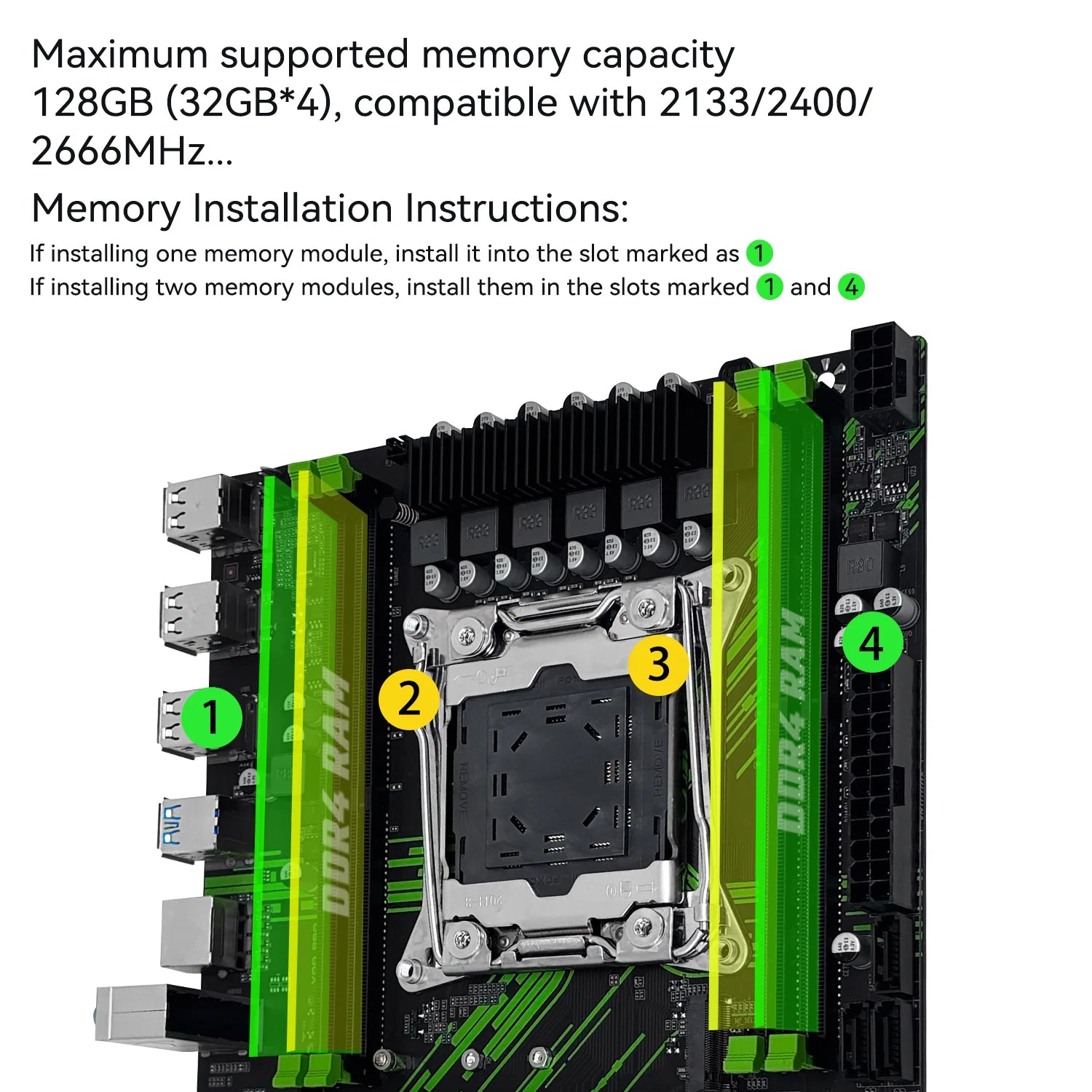

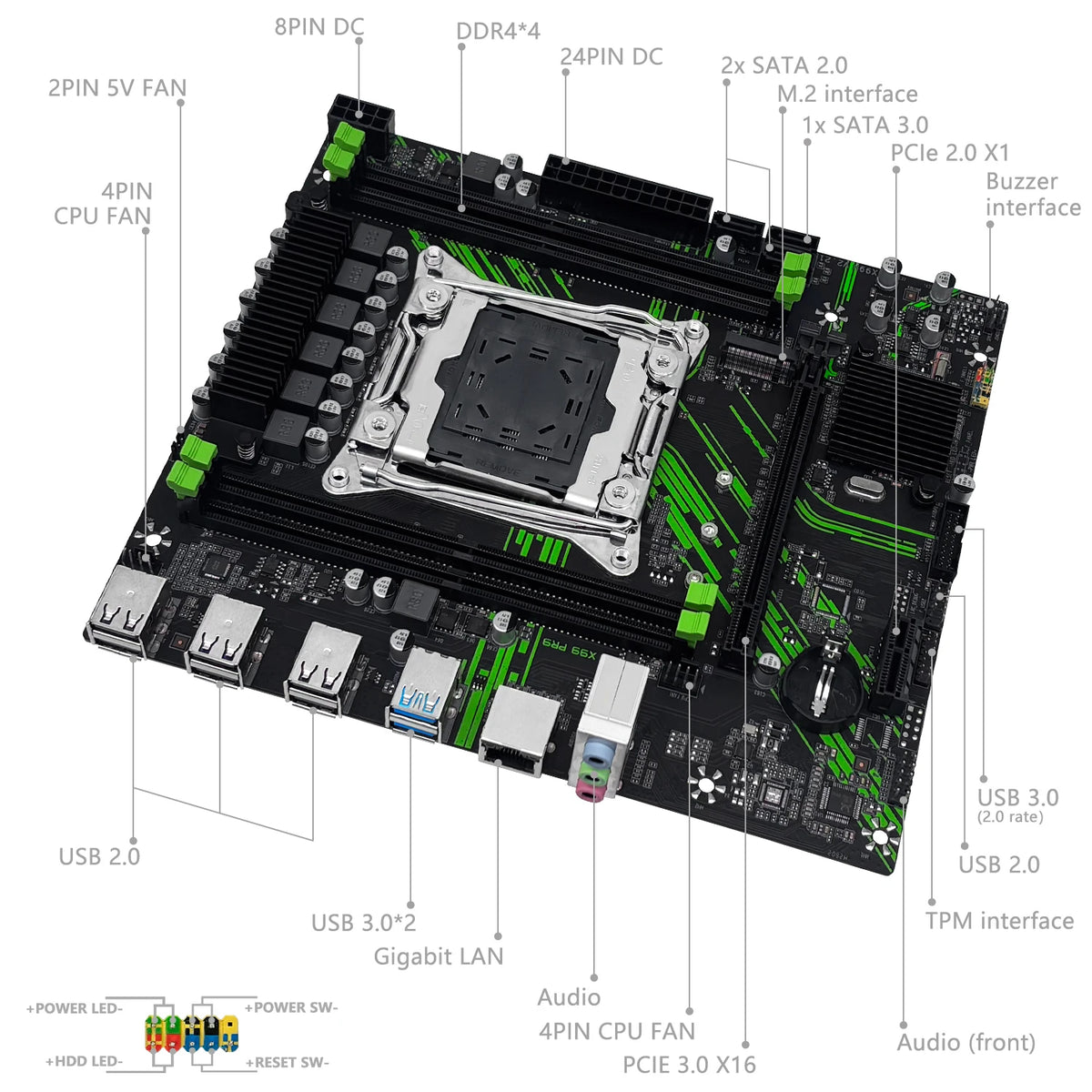

The motherboard features four DDR4 memory slots in a dual-channel configuration, supporting a stated maximum capacity of 128GB using up to 32GB per slot. Supported memory frequencies include 2133, 2400, 2666, 3000 and 3200MHz, subject to processor and memory compatibility.

Storage connectivity includes one M.2 slot supporting compatible NVMe or SATA SSDs, together with two SATA 2.0 ports and one SATA 3.0 port. Expansion options include one PCIe x16 slot and one PCIe x1 slot for compatible graphics and expansion hardware.

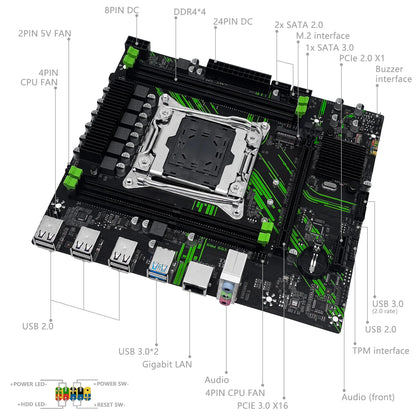

Rear connectivity includes Gigabit Ethernet, USB 2.0 and USB 3.0 ports, PS/2 keyboard and mouse interfaces and three audio connections for microphone input, line output and line input. The compact approximately 215 × 185mm format makes the board suitable for compatible Micro-ATX desktop builds.

An LPC 14-pin TPM 2.0 interface is specified on the upgraded version. However, the supplier states that a small quantity of older-version boards may still be shipped, so TPM functionality cannot be guaranteed for every unit. A processor and motherboard battery are not included.

Key Features

• MACHINIST X99 PR9 desktop motherboard
• LGA 2011-3 processor socket
• Designed for compatible Intel Xeon E5 V3 processors
• Designed for compatible Intel Xeon E5 V4 processors
• Micro-ATX form factor
• 4 × 288-pin DDR4 memory slots
• Dual-channel DDR4 memory architecture
• Maximum stated memory capacity: 128GB
• Supports up to 32GB per memory slot
• Listed DDR4 frequencies: 2133 / 2400 / 2666 / 3000 / 3200MHz
• 1 × M.2 slot supporting compatible NVMe or SATA SSDs
• Supports M.2 2280 SSD format
• 2 × SATA 2.0 ports
• 1 × SATA 3.0 port
• 1 × PCIe x16 expansion slot
• 1 × PCIe x1 expansion slot
• 1 × Gigabit RJ45 Ethernet connection
• Maximum stated LAN speed: 1000Mbps
• 6 × USB 2.0 ports specified
• 2 × USB 3.0 ports specified
• PS/2 keyboard and mouse interfaces
• Mic-in, line-out and line-in audio connections
• 24-pin main power connector
• CPU fan connector included on motherboard
• LPC 14-pin TPM 2.0 interface specified on upgraded version
• Supplier states some older-version boards may be shipped without the upgraded TPM configuration

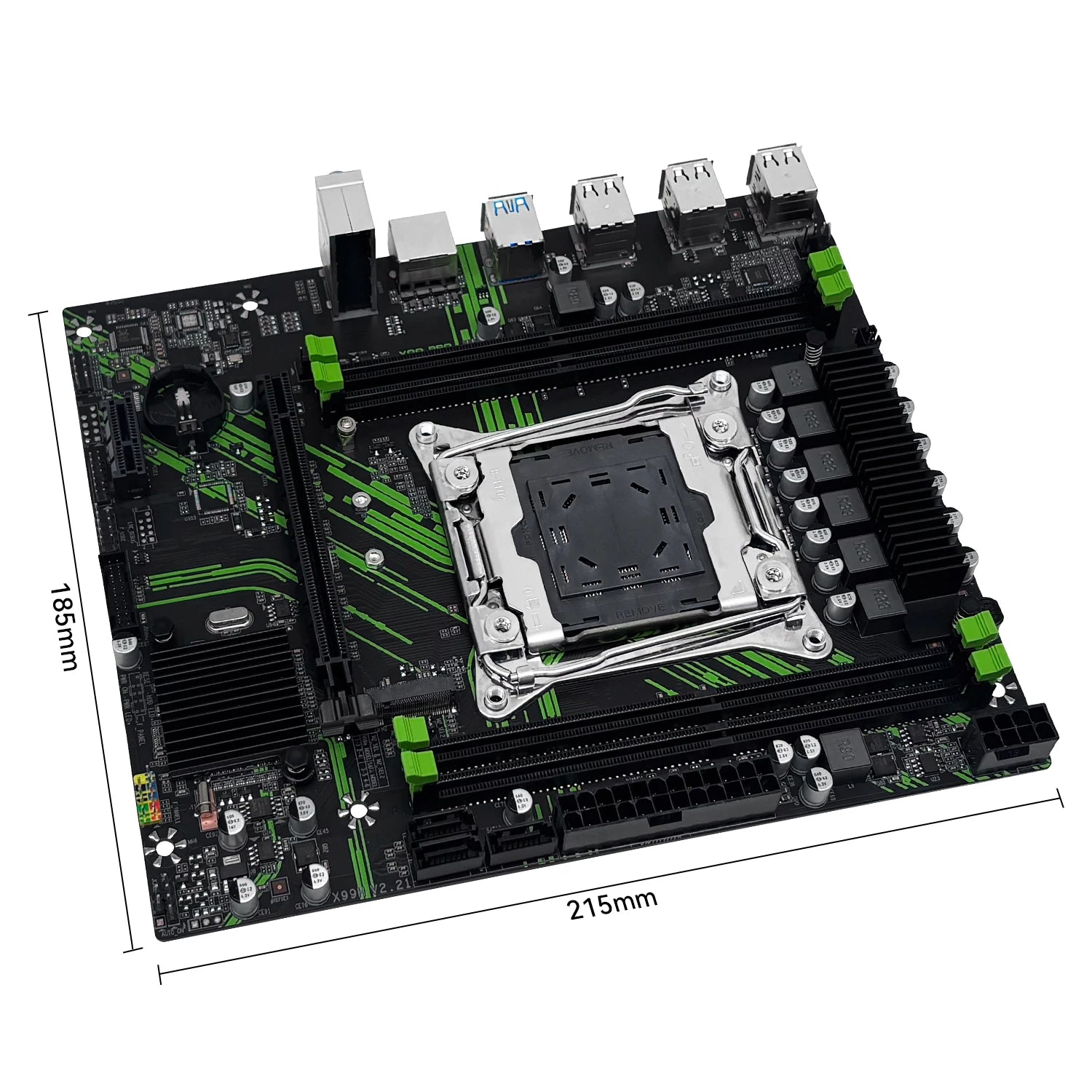

• Approximate dimensions: 215 × 185mm
• CPU not included
• Motherboard battery not included
• Brand: MACHINIST
• Model: X99-PR9

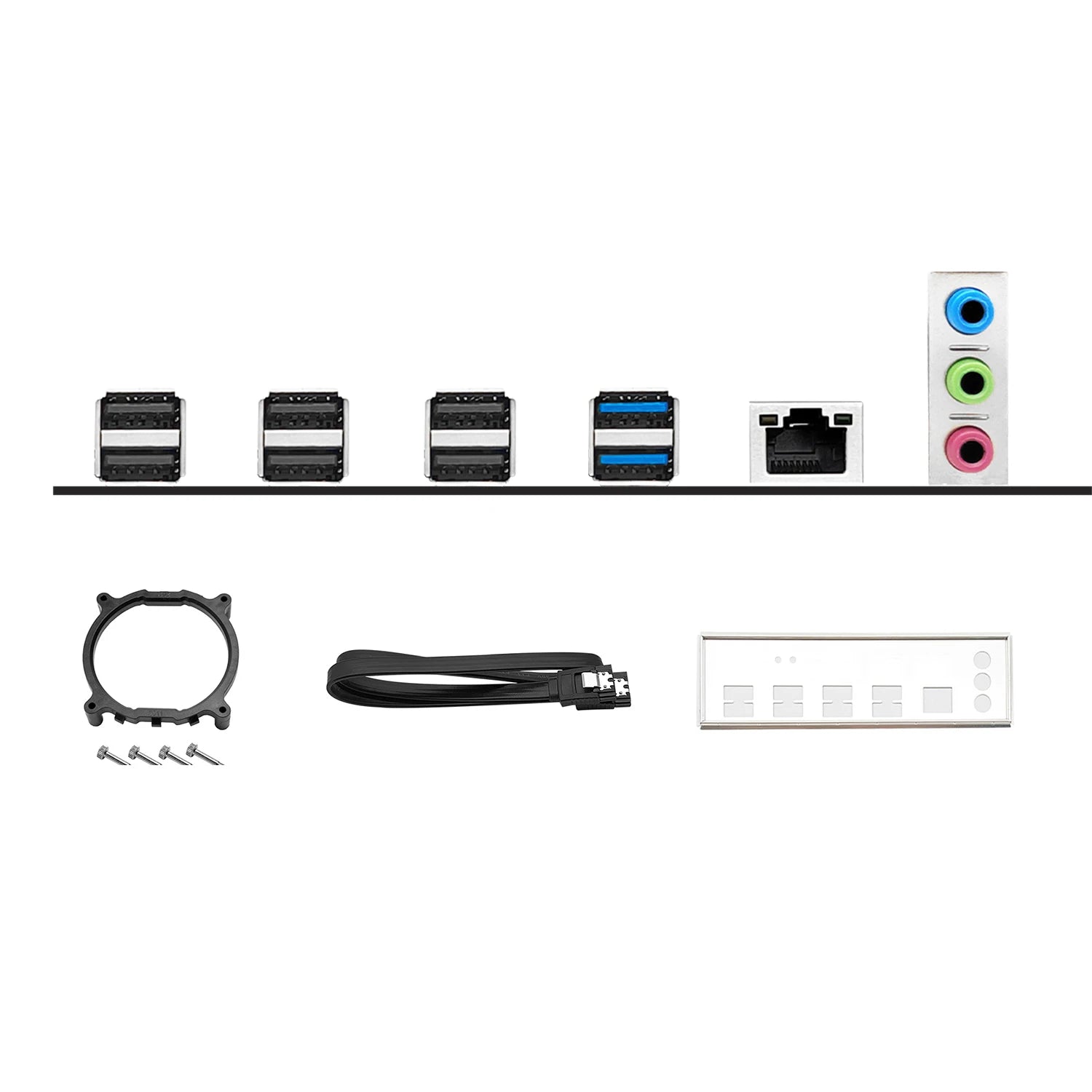

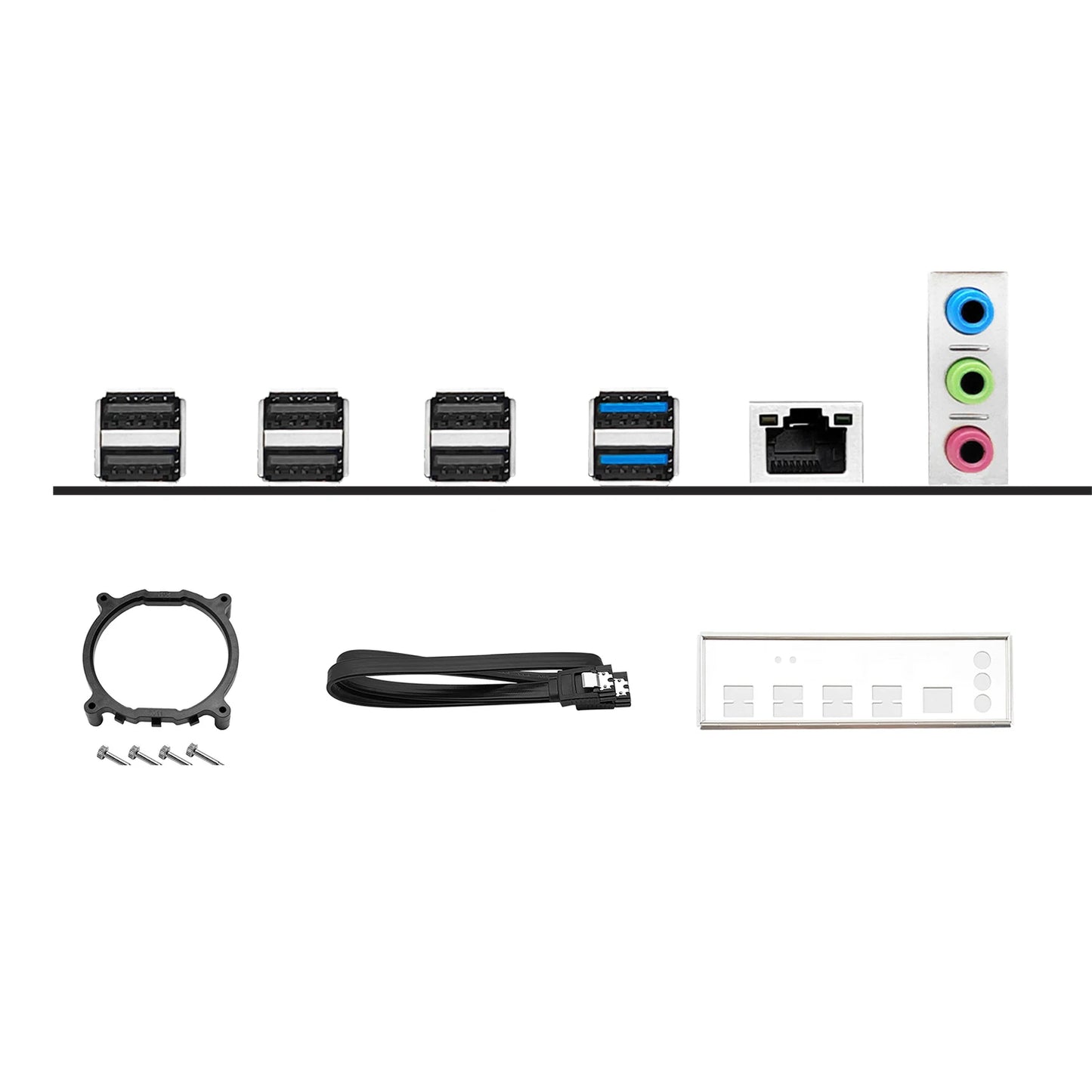

Package Includes

• 1 × MACHINIST X99 PR9 Motherboard
• 1 × I/O Shield
• 1 × SATA Cable
• 1 × LGA 2011-3 Heatsink
