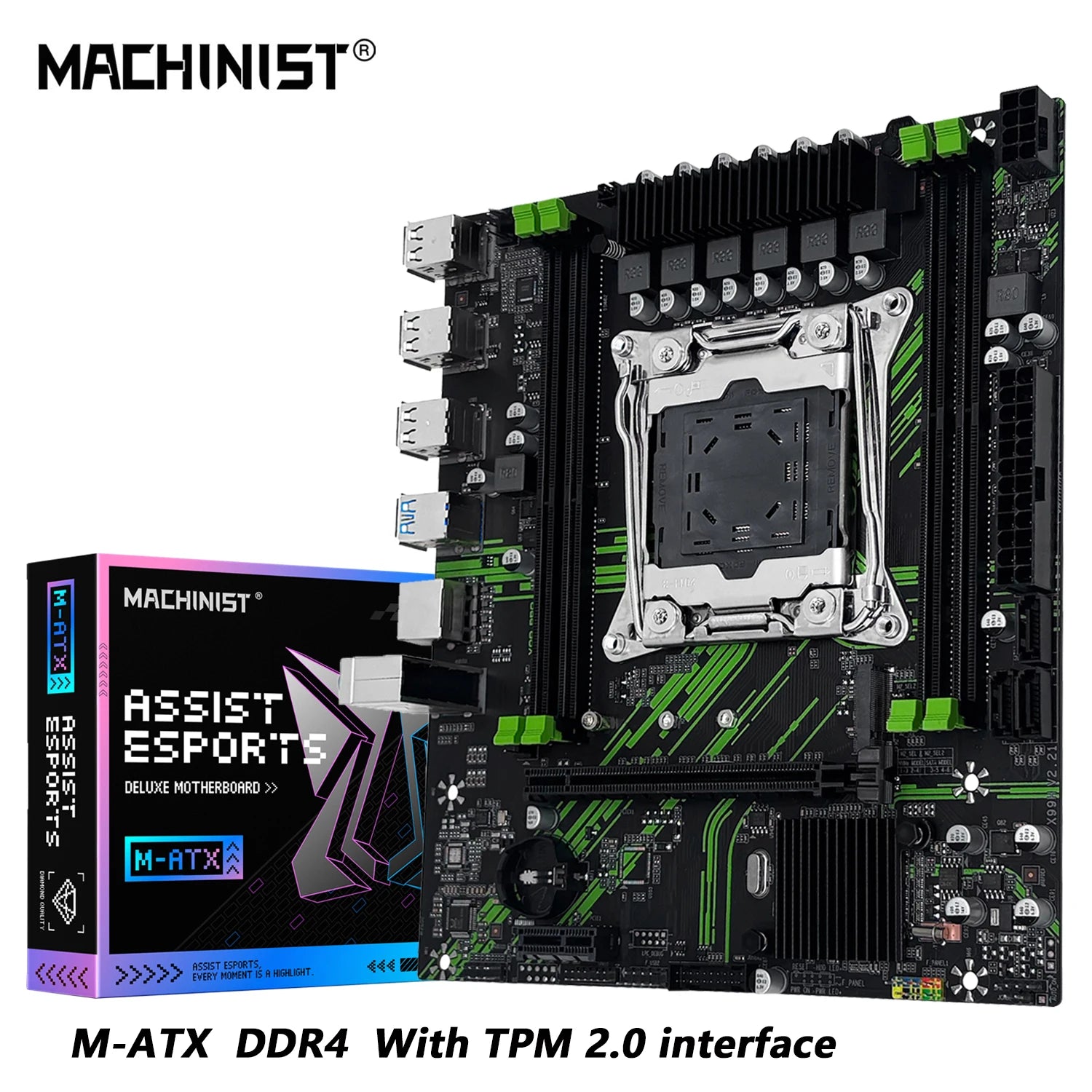

MACHINIST X99 PR9 LGA 2011-3 DDR4 Motherboard

Build or upgrade a desktop workstation with the MACHINIST X99 PR9 motherboard, designed for compatible Intel LGA 2011-3 processors including Intel Xeon E5 V3 and V4 series CPUs. Its compact Micro-ATX design combines DDR4 memory support, PCIe expansion, M.2 storage and Gigabit Ethernet connectivity for office, multimedia and video-production systems.

The motherboard features four 288-pin DDR4 memory slots with dual-channel architecture and supports up to 128GB of memory. It provides one M.2 slot supporting NVMe and SATA storage, alongside SATA 2.0 and SATA 3.0 connections for additional drives.

Expansion options include one PCIe 3.0 x16 slot and one PCIe x1 slot. Rear connectivity includes USB 2.0, USB 3.0, Gigabit Ethernet, PS/2 keyboard and mouse connections and standard audio ports.

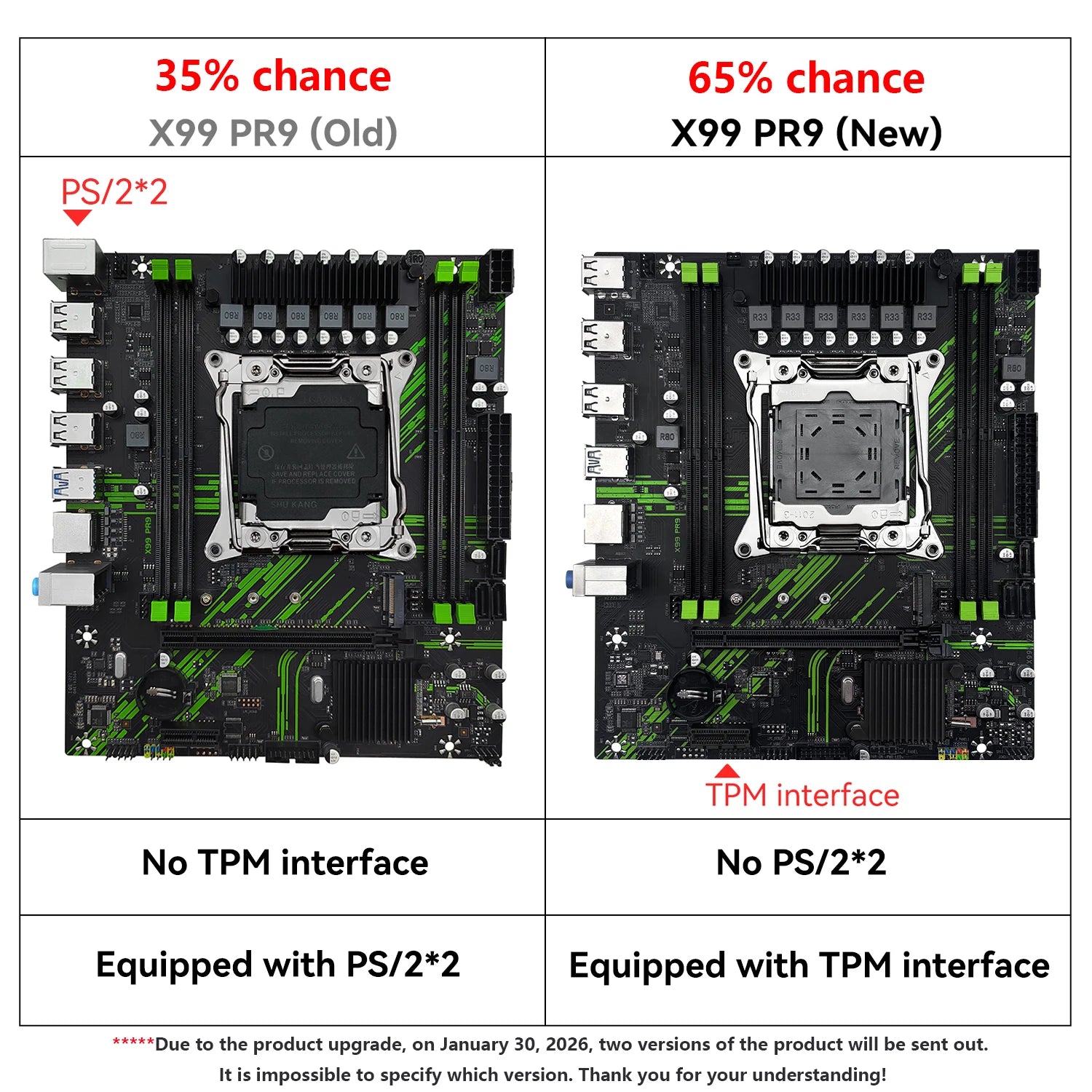

Please note that the X99 PR9 is currently undergoing a product revision. The supplier may ship either the previous version or the newer version with TPM support at random, so a specific TPM version cannot be guaranteed.

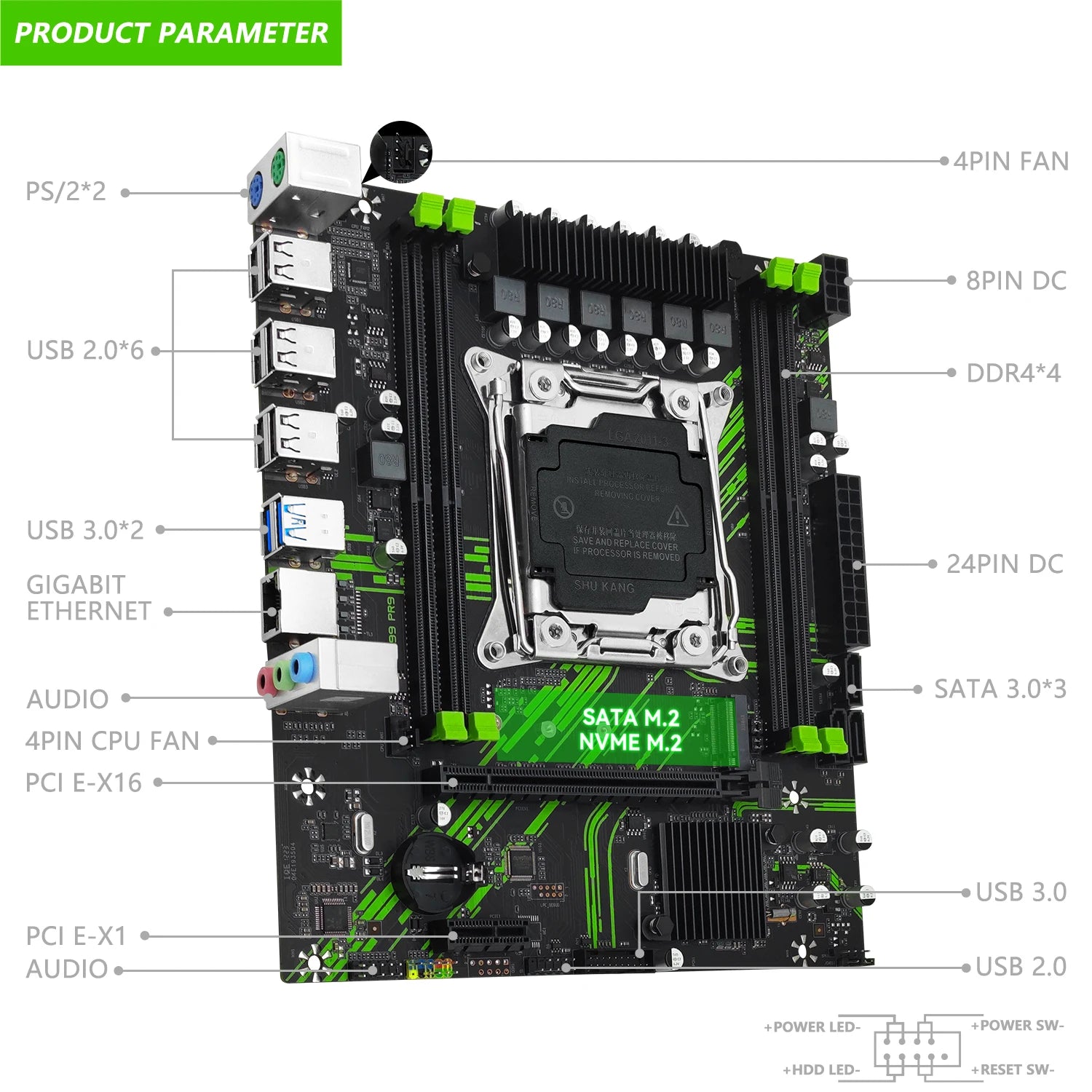

Key Features

• MACHINIST X99 PR9 motherboard
• LGA 2011-3 CPU socket
• Compatible with supported Intel Xeon E5 V3 and V4 processors
• Micro-ATX form factor
• Dual-channel DDR4 memory architecture

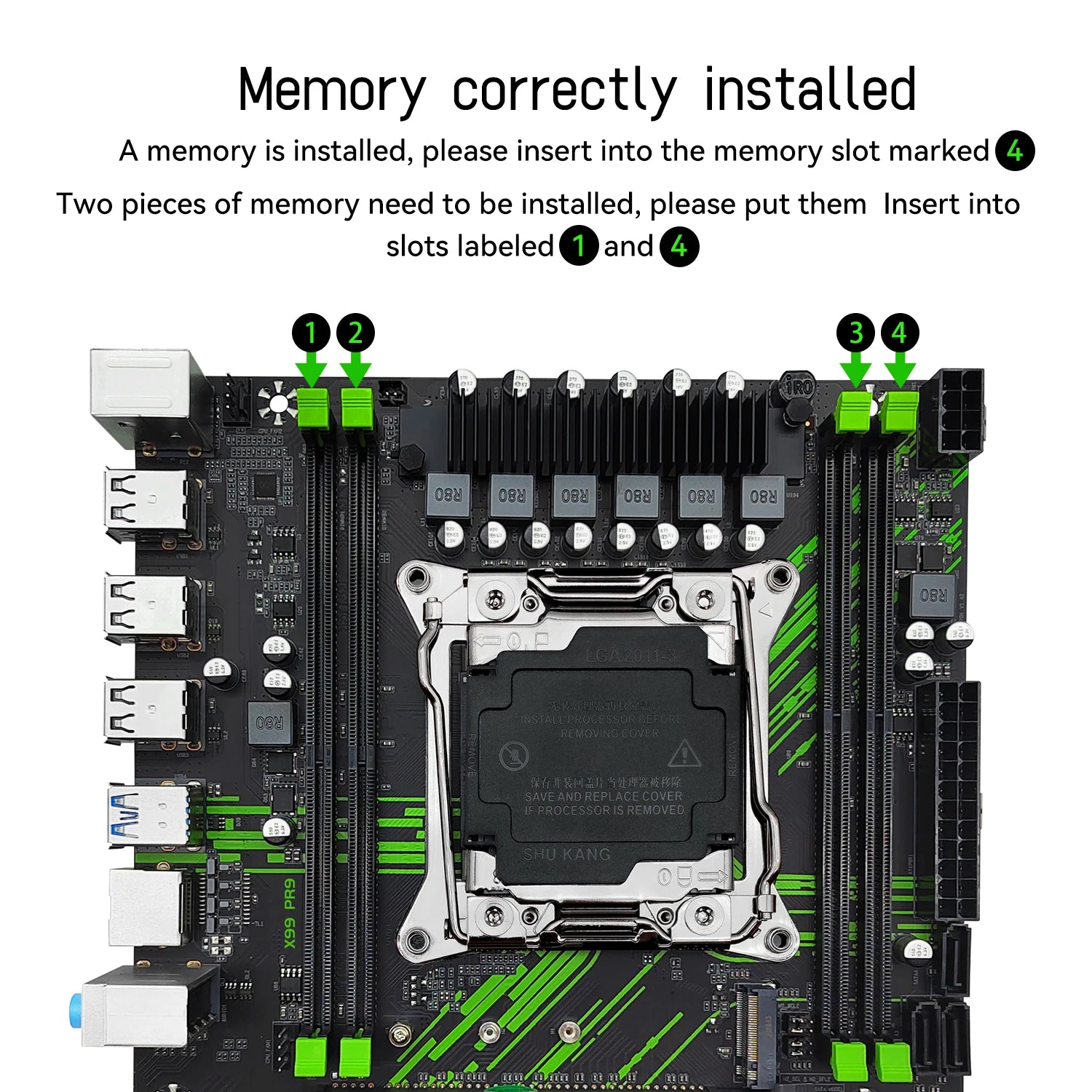

• 4 × 288-pin DDR4 memory slots
• Maximum memory capacity: 128GB
• Supports DDR4 2133 / 2400 / 2666 / 3000 / 3200MHz memory
• 1 × M.2 slot supporting NVMe and SATA SSDs
• Supports M.2 2280 SSD format
• 1 × PCIe 3.0 x16 slot
• 1 × PCIe x1 slot
• 2 × SATA 2.0 interfaces
• 1 × SATA 3.0 interface
• Gigabit Ethernet connection up to 1000Mbps
• Rear I/O includes 6 × USB 2.0 and 2 × USB 3.0 ports
• PS/2 keyboard and mouse interfaces
• Audio connections for Mic-in, Line-out and Line-in
• 24-pin main power connector
• CPU fan connector

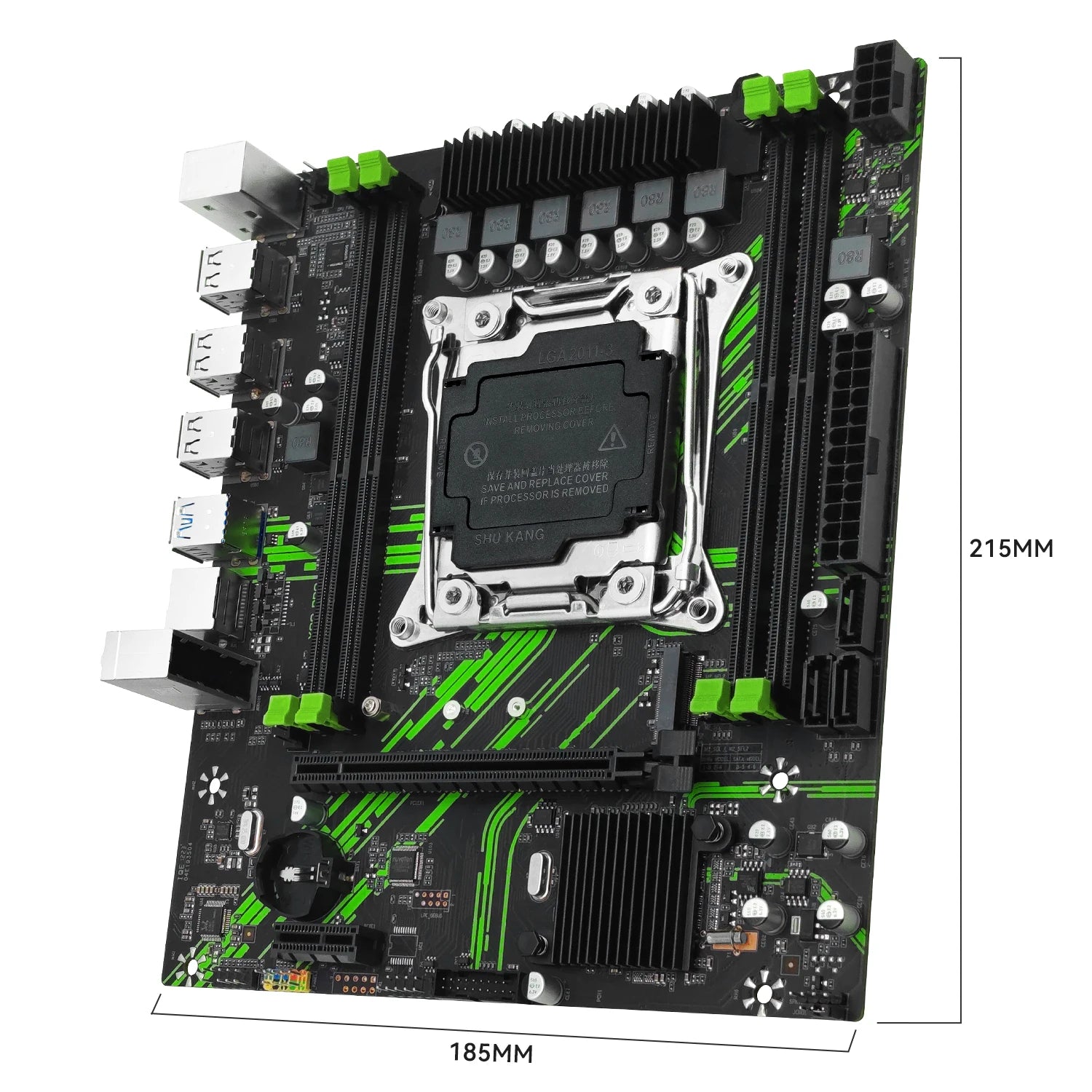

• Approximate dimensions: 215 × 185mm
• Suitable for office, audio/video and video-production desktop systems
• CE and RoHS certified
• CPU not included
• Motherboard battery not included
• Supplier recommends a branded power supply rated at least 500W
• Product appearance and component layout may vary slightly between production batches
• TPM-equipped and non-TPM revisions may be supplied at random

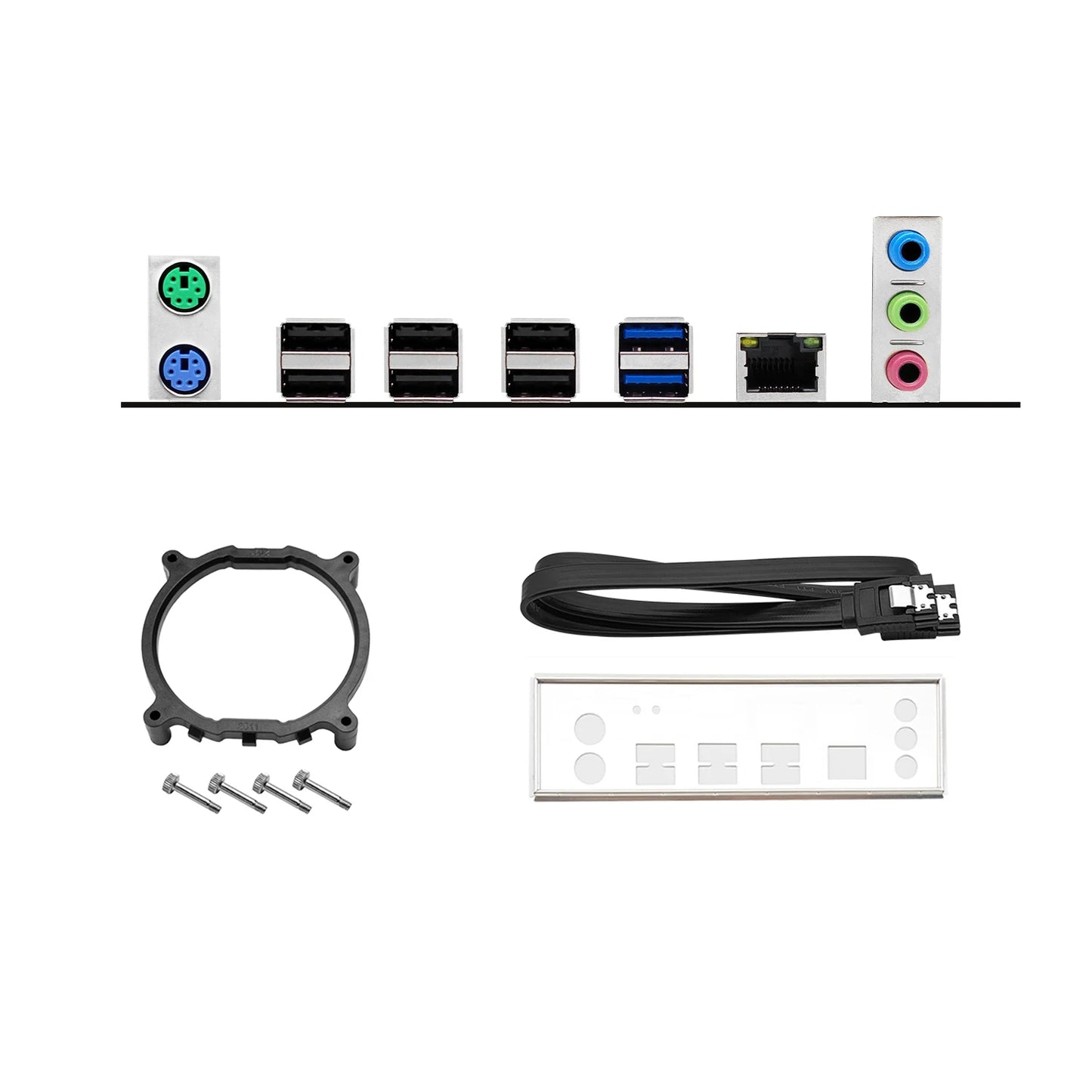

Package Includes

• 1 × MACHINIST X99 PR9 Motherboard
• 1 × I/O Shield
• 1 × SATA Cable
• 1 × LGA 2011-3 Heatsink Accessory
