Roidion

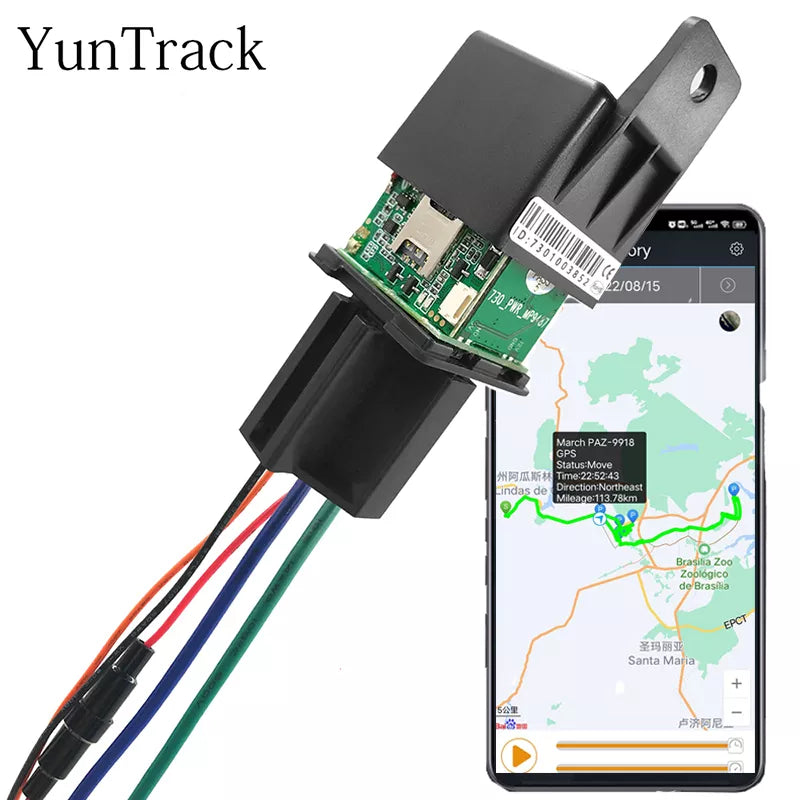

Motorcycle Car Relay GPS Tracker

Motorcycle Car Relay GPS Tracker

£22.99 GBP
£33.99 GBP £22.99 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.
View full details

SPECIFICATIONS

  • Brand Name: YunTrack
  • Origin: Mainland China
  • Voltage: 12V
  • Battery Life: 30 Hours & Up
  • Item Size: 36*36*16 mm
  • Special Feature: Remote Control
  • GPS type: GPS Tracker
  • Model Name: CJ730Plus
  • Screen Size: No Screen
  • Gps Module: Yes

Out Power: 70 amps / day

Certification: CE

Certification: RoHS

4G G Band: 1/2/3/4/5/7/8/12/13/18/19/20/25/26/28/66/34/38/39/40/41

4G SA Band: 1/2/3/4/5/7/8/28/66

2G Band: 850/900/1800/1900Mhz

Network: GSM/GPRS, LTE FDD

Satellite: GPS GLONASS BDS GALILEO QZSS

voltage: 9V-95V

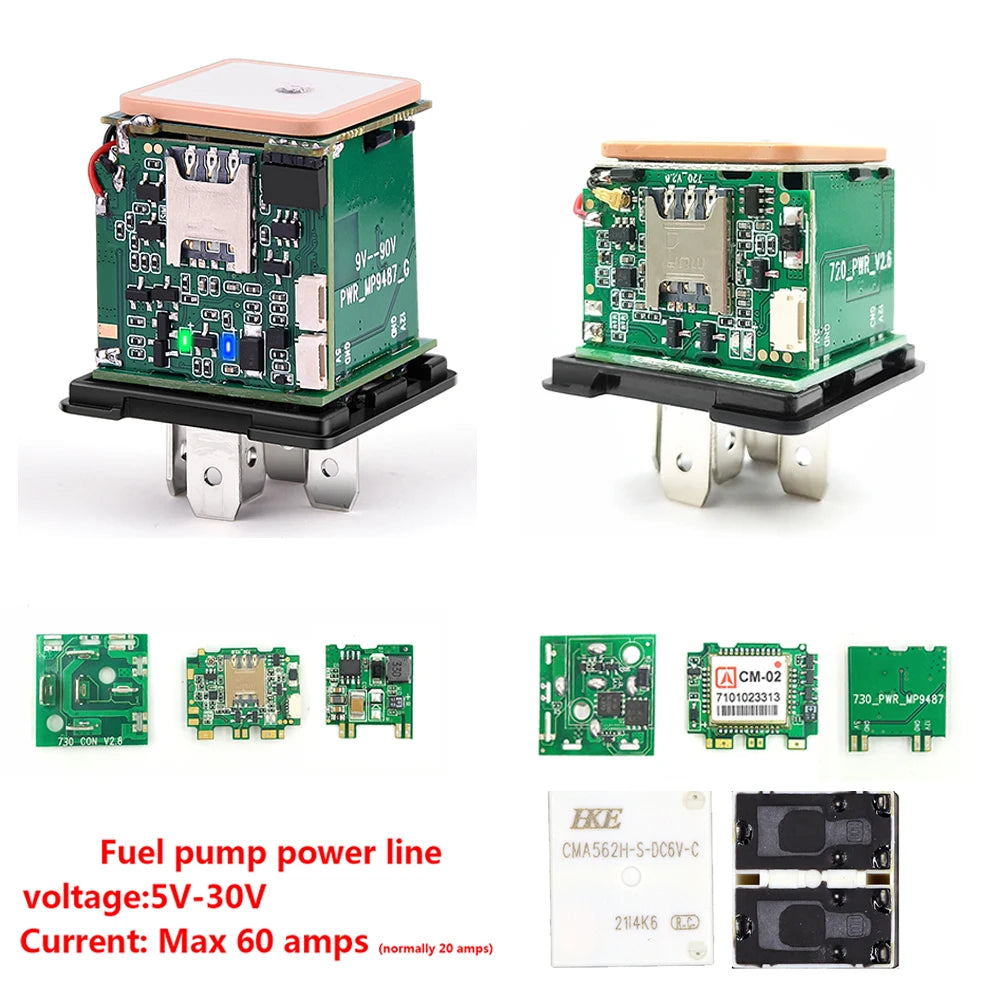

Fuel pump power line voltage: 5V-30V

Fuel pump power line Current: Max 60 amps

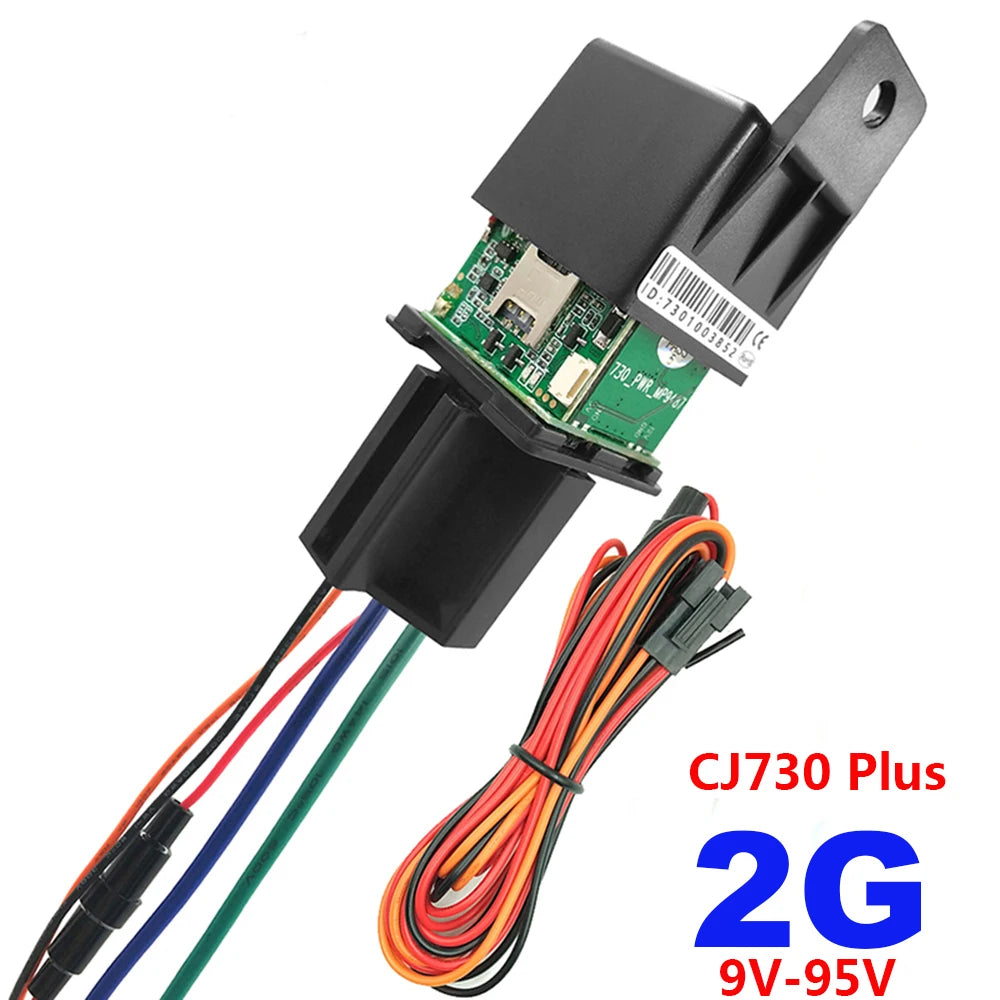

 CJ730 Plus New version April

      Voltage range upgrade:9V-95V Increased applicable vehicle range

       Fuel pump power line voltage:5V-30V ,

       Fuel pump power line Current: Max 60 amps (normally 20 amps).

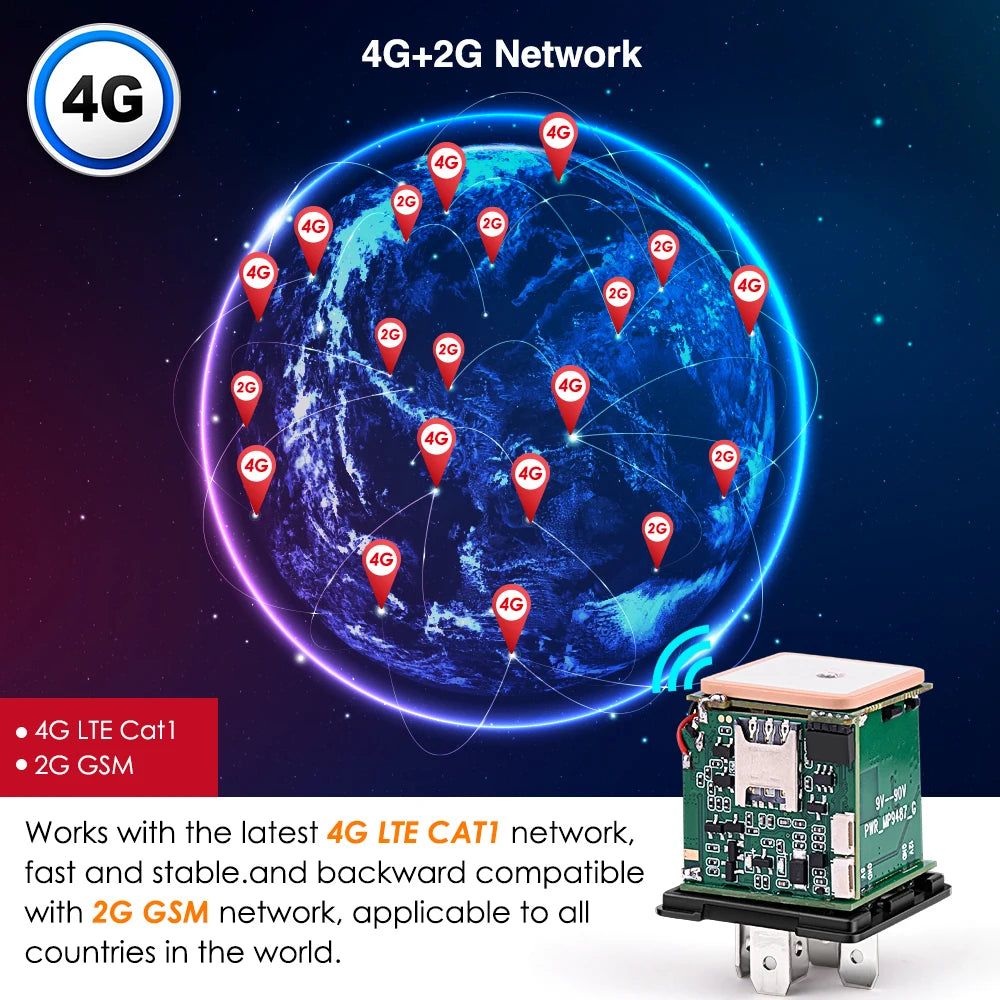

4G G Global band selection:

FDD-LTE-BAND:1/2/3/4/5/7/8/12/13/18/19/20/25/26/28/66/34/38/39/40/41

GSM:850/900/1800/1900

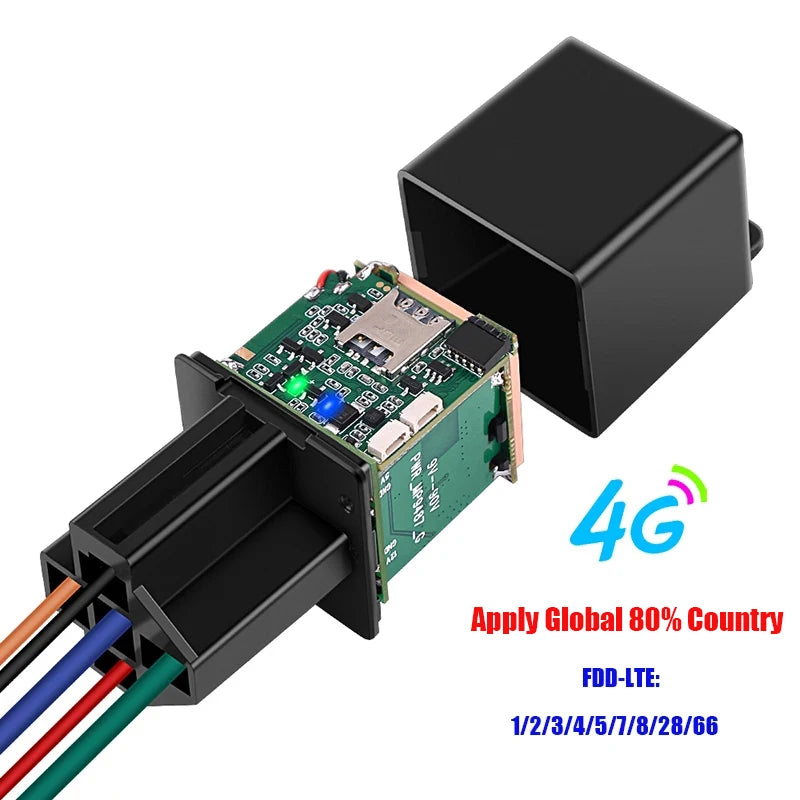

4G SA Apply Global 80% Country band selection:

FDD-LTE-BAND:1/2/3/4/5/7/8/28/66

GSM:850/900/1800/190

Dual IP/Dual Protocol

GPS multi-mode positioning:

Supports a variety of satellite navigation systems, including China's BDS (Beidou Satellite)

navigation system), GPS in the US, GLONASS in Russia, GALILEO in the EU, QZSS in Japan

And satellite augmentation systems SBAS (WAAS, EGNOS, GAGAN, MSAS). It is a true six-in-one multi-mode satellite navigation and positioning device, including 32 tracking channels, which can be connected simultaneously.

Receive GNSS signals from six satellite navigation systems and realize joint positioning.

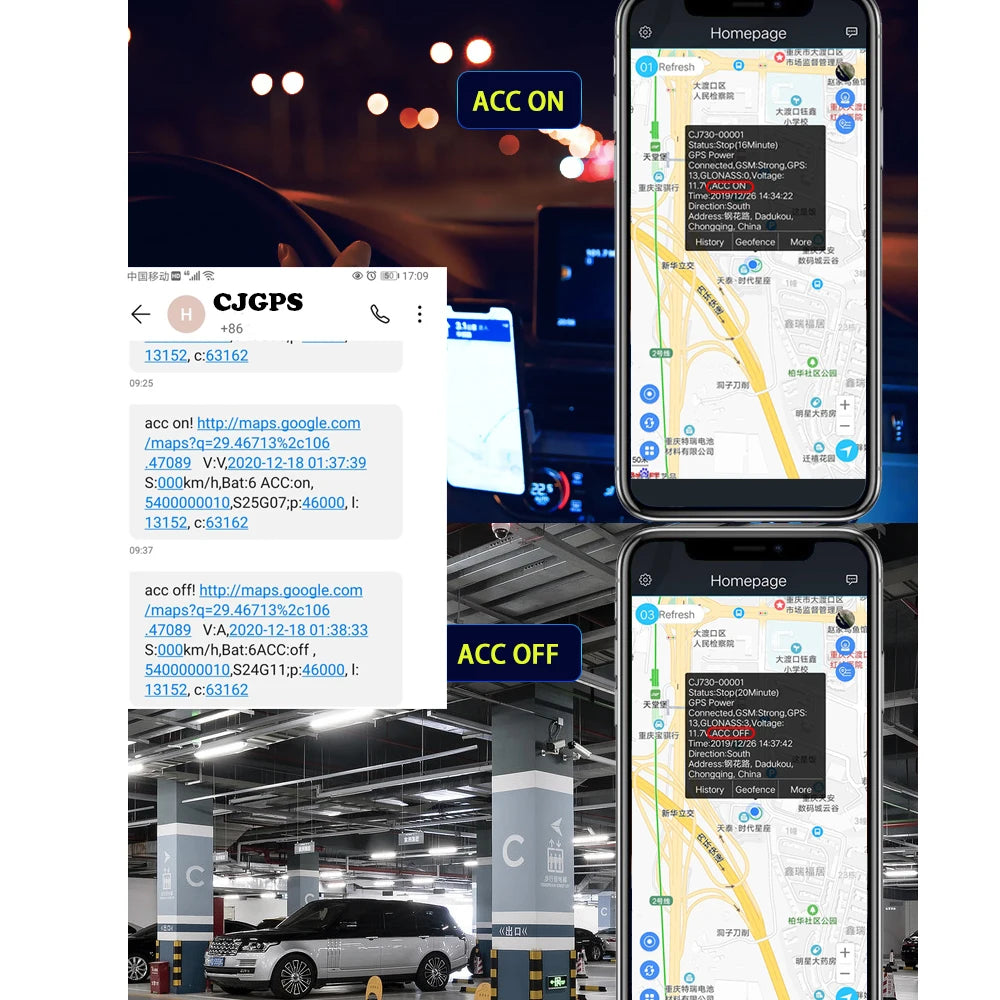

Intelligent anti-theft system

Car start, automaticallycancel the anti-theft mode; stop the fire, the positioner
automatically enters the anti-theft mode



Multiple location trackingmdash24 hour upload

Beidou+GPS+LBS multi-mode positioning system makes the acquired position

information more accurate and reliable, and rejects all errors;





Historical trackmdash180 days

Free storage of the cloud, recording the car's 180-day driving trajectory throughout the

day, in case of special circumstances, do not worry, the phone can be seen

anytime, anywhere, it is so capricious.



Vehicle vibration alarm

When the car is stationary, the positioner automatically enters the fortified state. When the car is moved or bumped, the positioner will immediately send an alarm message to the owner (sms, phone, APP, multiple alarm prompts)


Equipment removal alarm

The device is equipped with a sensitive sensor, and when the device is removed

or destroyed, the owner will immediately receive an alarm message.

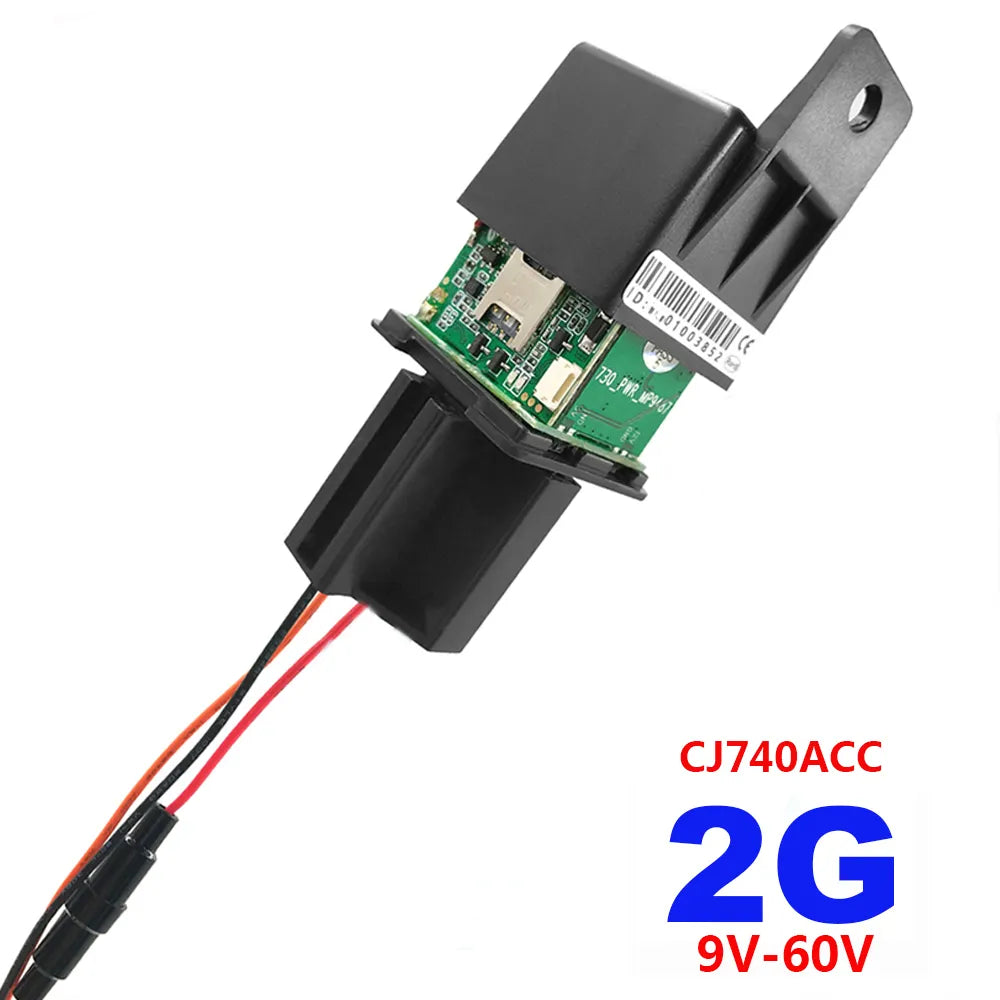

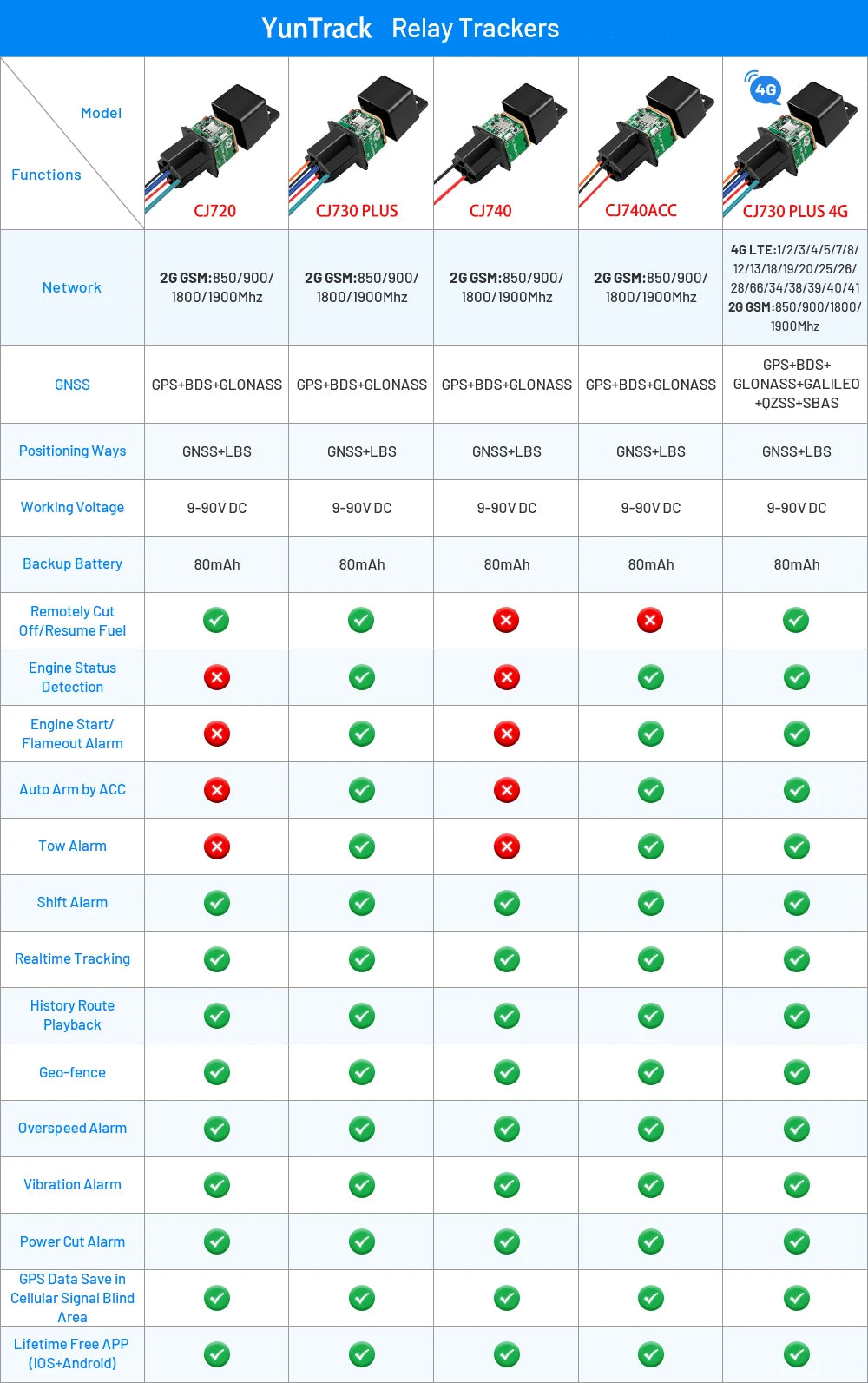

Functions and Product parameters （ Relay GPS Tracker CJ740/ NO Cut off oil ）

Terminal size : 31x 31x 57mm
Weight:50g
Network: GSM/GPRS
Network Band: 850/900/1800/1900Mhz
GPS module: MTK2503
GPS sensitivity: -159dBm
GPS position accuracy: 10m
First positioning time: Cold start 45-120 seconds
Warm start: 35 seconds
Hot start : 1 second
Operating voltage: 10-50V input
Battery : Built-in lithium battery 3.7V 110mAh
Storage temperature: -40degC to +85degC
Operating temperature: -20degC to +55degC
Humidity :5% - 95% Non-solidified


More Commands

Function

Command Format

Reply

Delete

for example

APN

apn+123456+space+content

apn ok


apn123456 cmnet

apnuser+123456+space+content

apnuser ok



apnpasswd+123456+space+content

apnpasswd ok



admin number

admin123456+space+admin phone number

admin ok

noadmin123456

admin123456 186********

time zone

timezone+123456+space+GMT No.

timezone ok


timezone123456 +1

Power save(default)

sleep123456 time

sleep time ok



shock sleep

sleep123456 shock

sleep shock ok



no sleep

sleep123456 off

sleep off ok



upload frequency

upload123456+space+time

upload ok


upload123456 10






Arm&Disarm

111 or SF

Arm delay in 0s

000 or CF


Position

G123456# or where

Google map



Restart

rst

restart ok



Back to factory

format

No reply
