Roidion

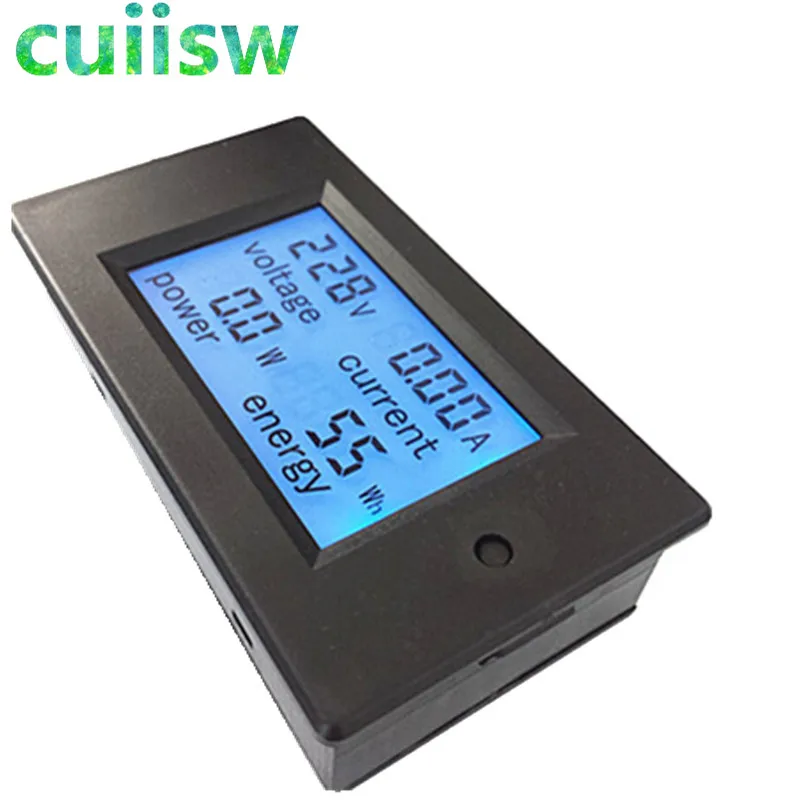

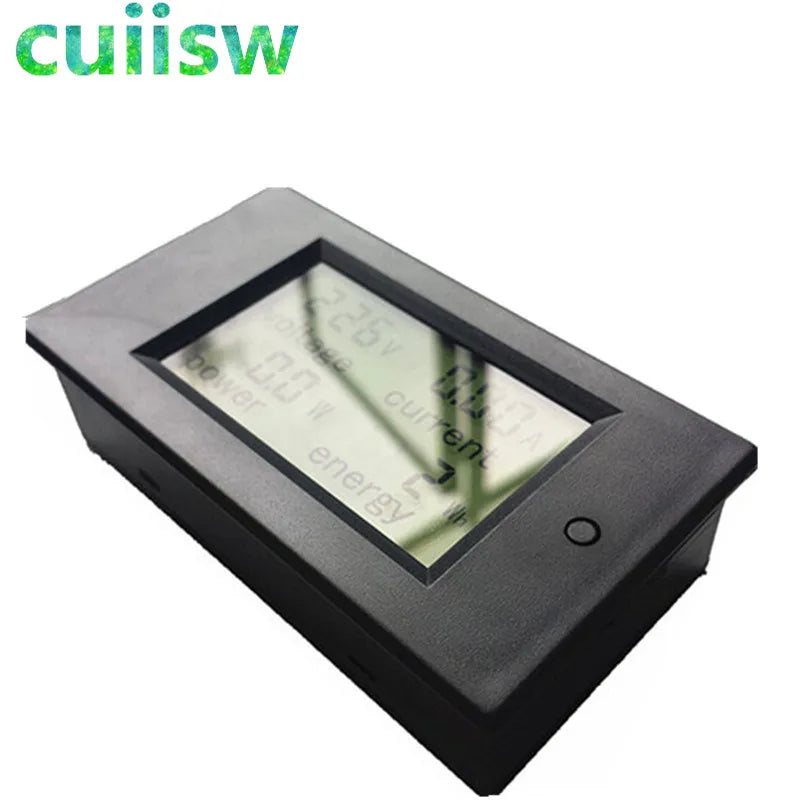

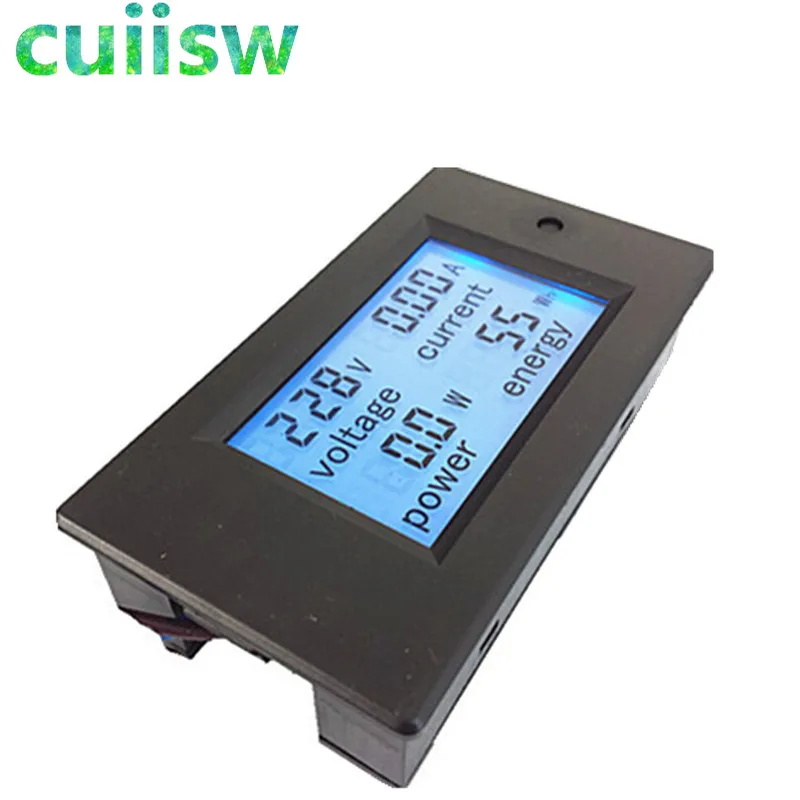

4 in 1 Voltage Current Power Energy Meter

4 in 1 Voltage Current Power Energy Meter

£10.99 GBP
£16.99 GBP £10.99 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.
View full details

SPECIFICATIONS

  • Brand Name: cuiisw
  • Model Number: AC 80-260V 20A voltmeter Ammeter
  • Display Type: Digital Only
  • Power Supply: AC
  • Origin: Mainland China
  • Certification: CE
  • DIY Supplies: ELECTRICAL
  • Choice: yes
  • semi_Choice: yes


  • 1. Working voltage: 80 ~ 260VAC

  • 2. Test voltage: 80 ~ 260VAC

  • 2. Rated power: 20A / 4500W 100A/22000W

  • 3. Working Frequency: 45-65Hz


A. Function


  • 1. voltage, current, power, energy

  • 2. overload alarm function (over power alarm threshold, the backlight and power flicker tips).

  • 3. The power alarm threshold preset function (can set up their own power alarm threshold).

  • 4.The power button clear function.

  • 5. Power-down data storage function.

  • 6. Large-screen LCD screen full display function (display voltage, current, active power, power).

  • 7. Backlight.


B. display and key


I. Display Interface

  •     Display voltage, current, power, energy parameters from the large-screen LCD screen simultaneously.

II. Display Format


1. Power: measurement range 0 ~ 4.5kW

             1kW display format within 0.0 ~ 999.9W;

              From 1kW display format 1000 ~ 4500W.

2. Power: measurement range 0 ~ 9999kWh

              10kWh within the display format 0 ~ 9999Wh;

              Above 10kWh display format 10 ~ 9999kWh;

3. Voltage: Test Range 80 ~ 260V

                 Display Format 80 ~ 220V

4. Current: Test Range 0 ~ 20A

                Display Format 0.00 to 20.00.

III. Button

1. The backlight control

  • By short press the button to turn on or off the backlight, the backlight status automatic storage.

2. The power cleared

  •  Step 1: Press the power button 5 seconds until the digital display window flashes, then release the button;

  • Step 2: If you press the button again, the consumption data is cleared and cleared quit flashing;

  • Step 3: If you press the button again 5 seconds long until no flashing, the charge data is not cleared and exit cleared.

3. The power to set the alarm value

  • Step 1: Press the button, when the LCD screen display "SET CLr" after the release button, set the value into the power status report;

  • Step 2: Power area displays the current value of the power alarm and the lowest digit starts blinking, then you can press the button of the digital +1, when there is no key operation more than three seconds, automatically switches by short digital set as above;

  • Step 3: After setting, press the button more than five seconds to automatically save and exit, the scope of active power threshold set for the 0.0 ~ 4.5kW.
