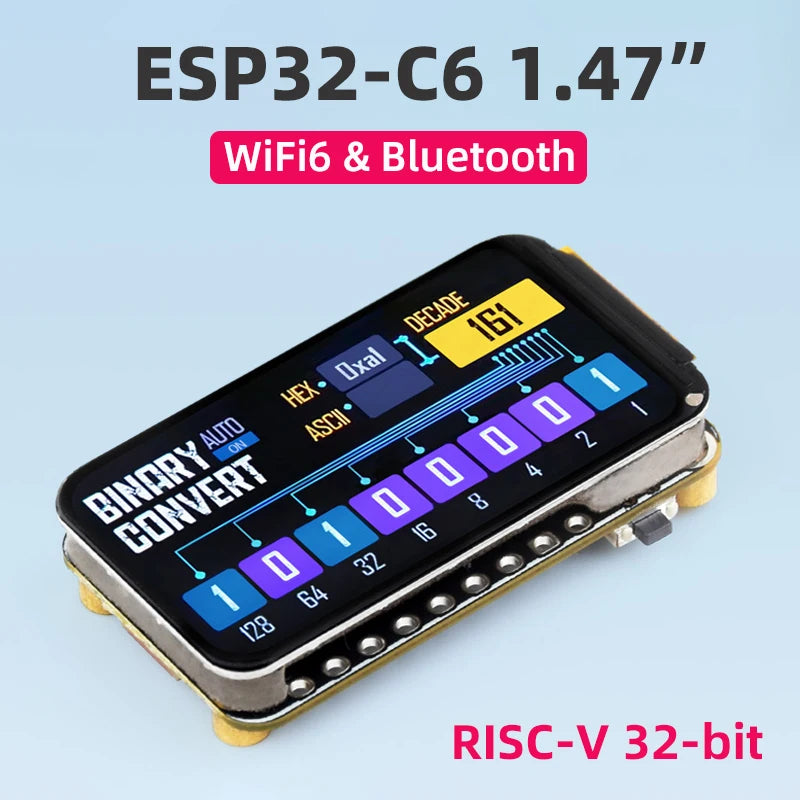

ESP32-C6 1.47-Inch LCD WiFi 6 & Bluetooth Development Board

Develop compact connected and graphical embedded projects with this ESP32-C6 development board, combining a 1.47-inch color LCD, WiFi 6, Bluetooth 5 LE and multiple onboard interfaces in a single compact platform.

Powered by the ESP32-C6 architecture, the board features a high-performance 32-bit RISC-V processor running at up to 160MHz together with a low-power RISC-V processor for energy-conscious applications. It includes 4MB Flash memory, 512KB HP SRAM, 16KB LP SRAM and 320KB ROM.

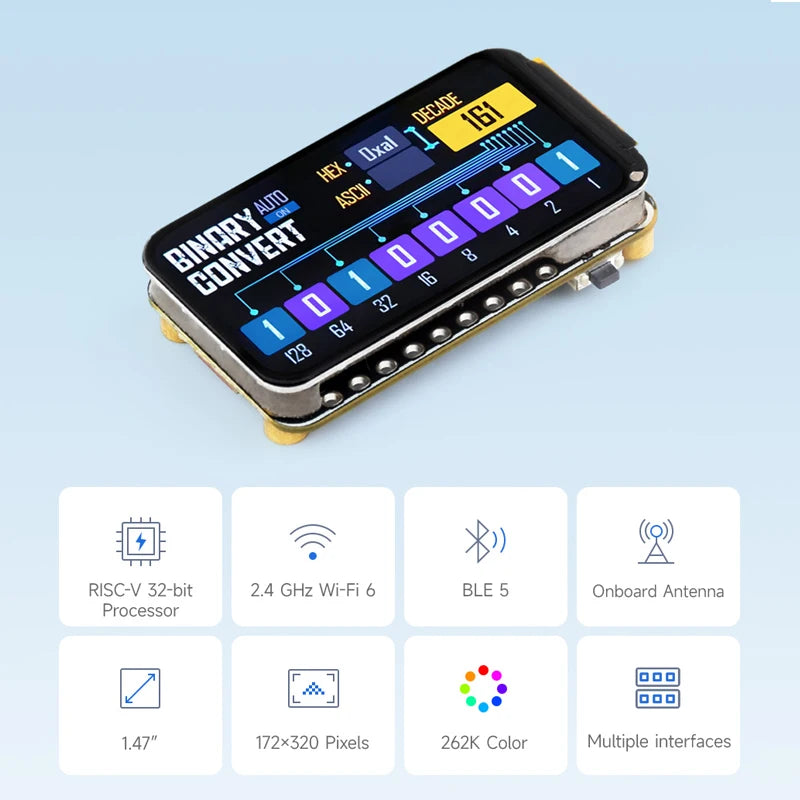

The integrated 1.47-inch LCD provides a 172 × 320 resolution with 262K colors, making the board suitable for graphical interfaces and applications using GUI frameworks such as LVGL. Wireless connectivity includes 2.4GHz WiFi 6 and Bluetooth 5 Low Energy, allowing development of connected AIoT, HMI and embedded-control projects.

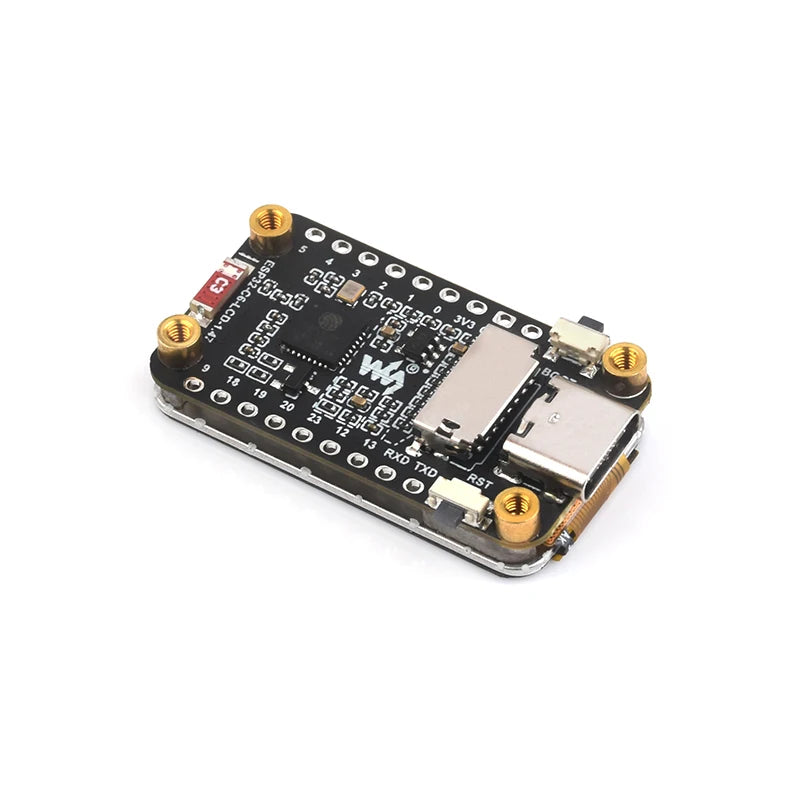

Additional onboard features include a TF card slot for external storage, full-speed USB connectivity, GPIO expansion interfaces, onboard ceramic antenna, BOOT and RESET buttons, and an integrated RGB LED. Two versions are available: the standard ESP32-C6-LCD-1.47 and the ESP32-C6-LCD-1.47-M with pre-soldered headers.

Key Features

• ESP32-C6 microcontroller development board
• High-performance 32-bit RISC-V processor up to 160MHz
• Additional low-power 32-bit RISC-V processor up to 20MHz
• Integrated 1.47-inch LCD display
• Screen resolution: 172 × 320 pixels
• Supports 262K colors

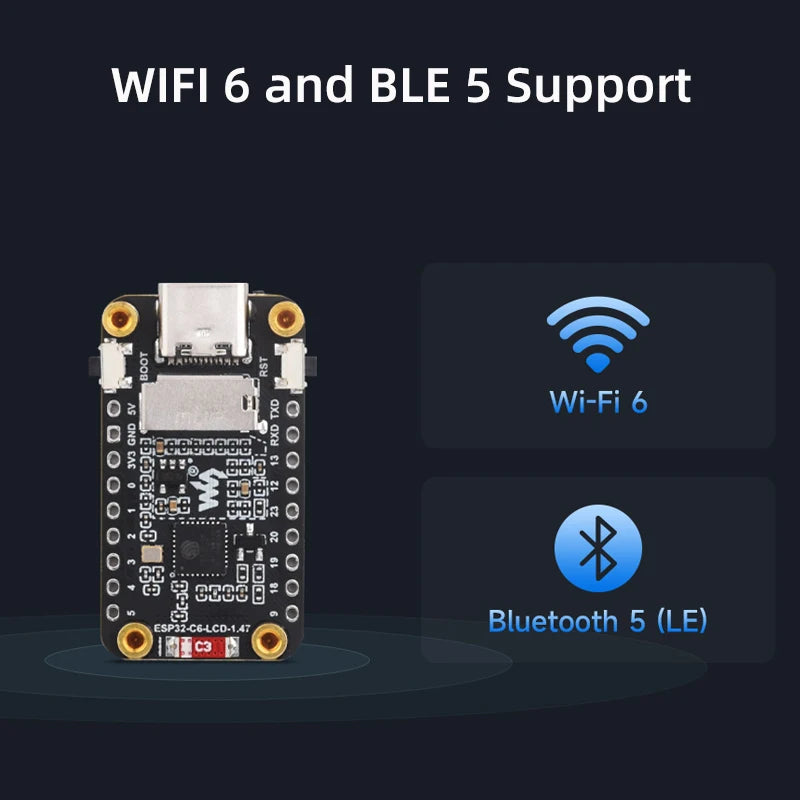

• 2.4GHz WiFi 6 connectivity
• Supports 802.11 b/g/n and WiFi 6 functionality
• Bluetooth 5 Low Energy support
• Onboard ceramic wireless antenna
• 4MB Flash memory
• 512KB HP SRAM
• 16KB LP SRAM
• 320KB ROM

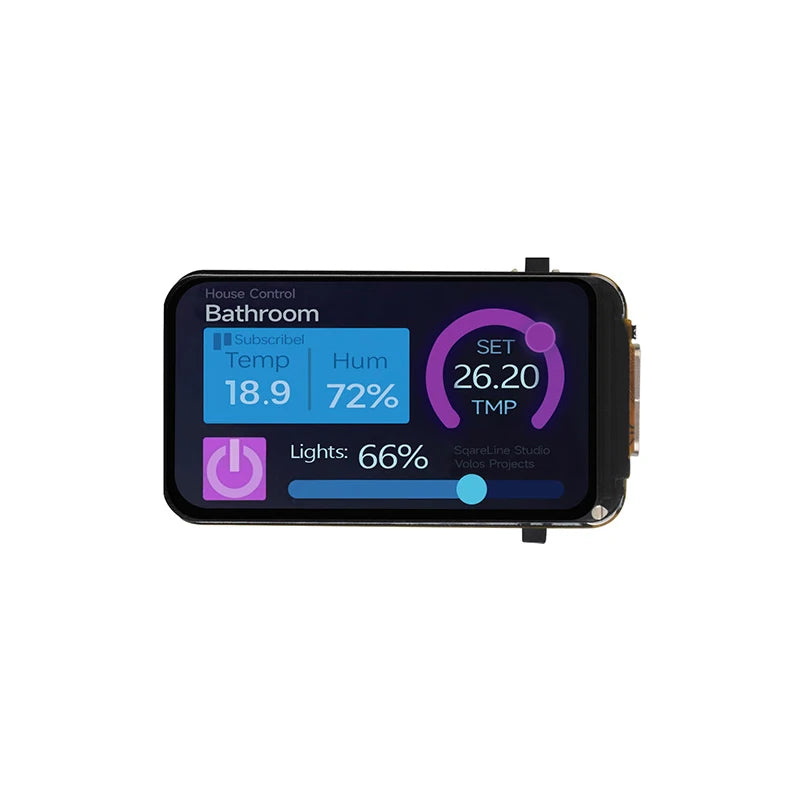

• Supports graphical interfaces such as LVGL
• Suitable for AIoT and HMI development
• Integrated TF card slot for external file or image storage
• Full-speed USB interface
• GPIO expansion interfaces for compatible peripherals

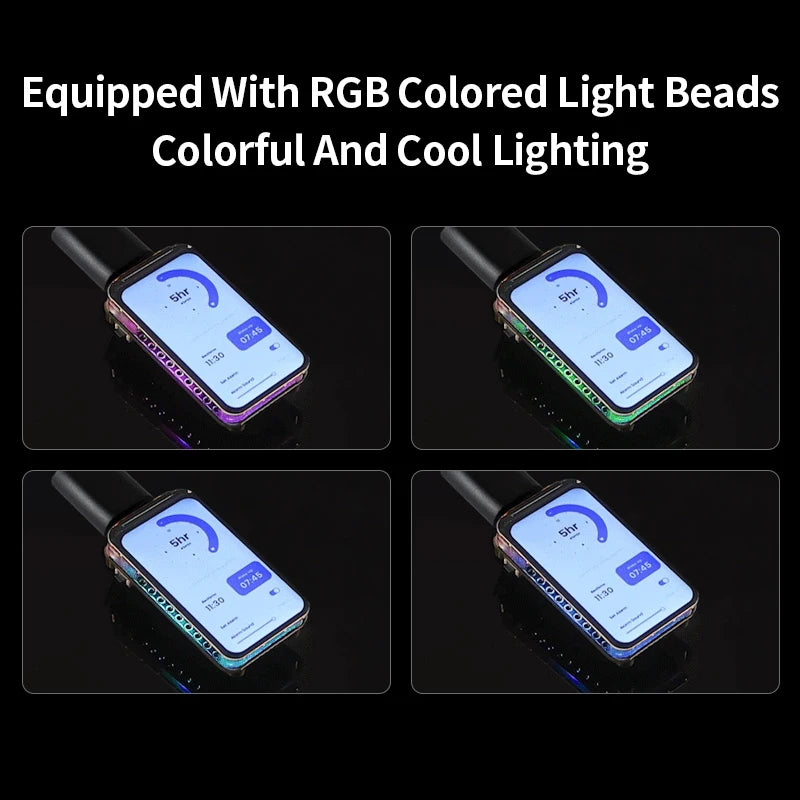

• Built-in RGB LED
• BOOT and RESET buttons
• Standard and pre-soldered-header versions available
• No battery included

Package Includes

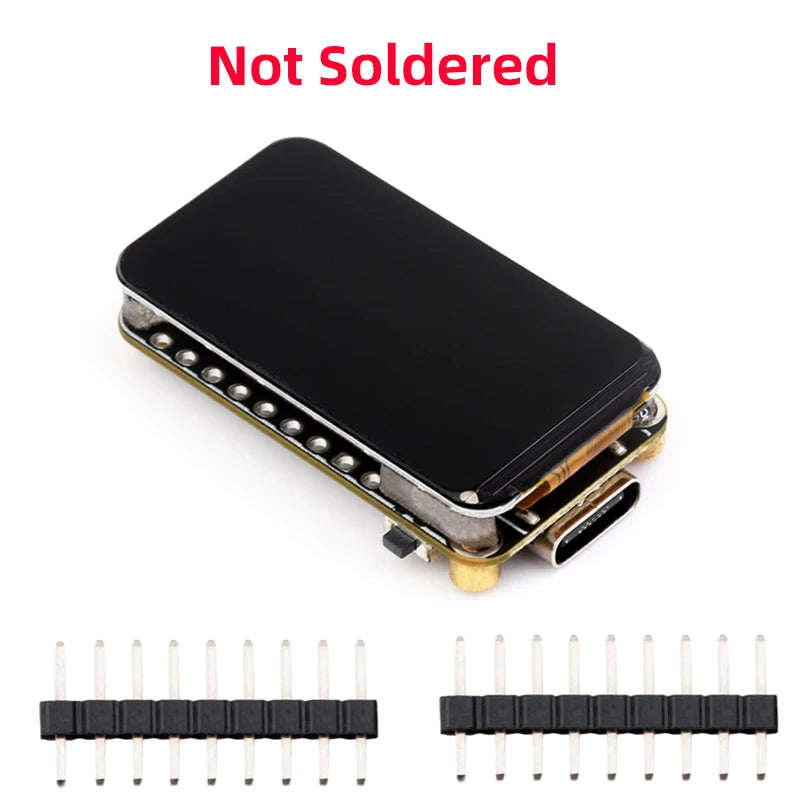

ESP32-C6-LCD-1.47 Standard Version:
• 1 × ESP32-C6-LCD-1.47 Development Board
• 2 × Black Headers

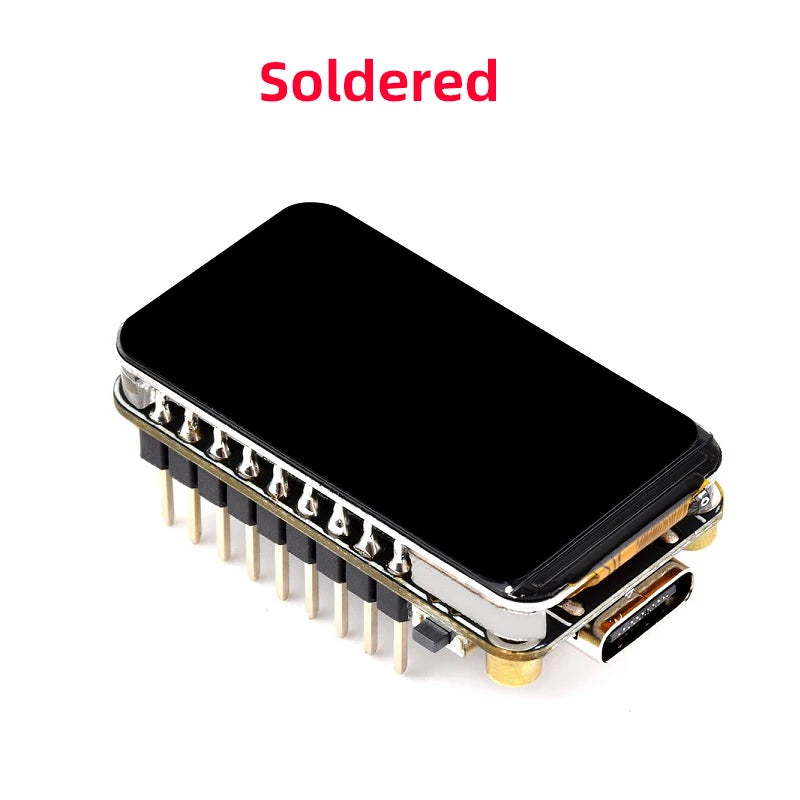

ESP32-C6-LCD-1.47-M Version:
• 1 × ESP32-C6-LCD-1.47 Development Board with Pre-Soldered Headers
