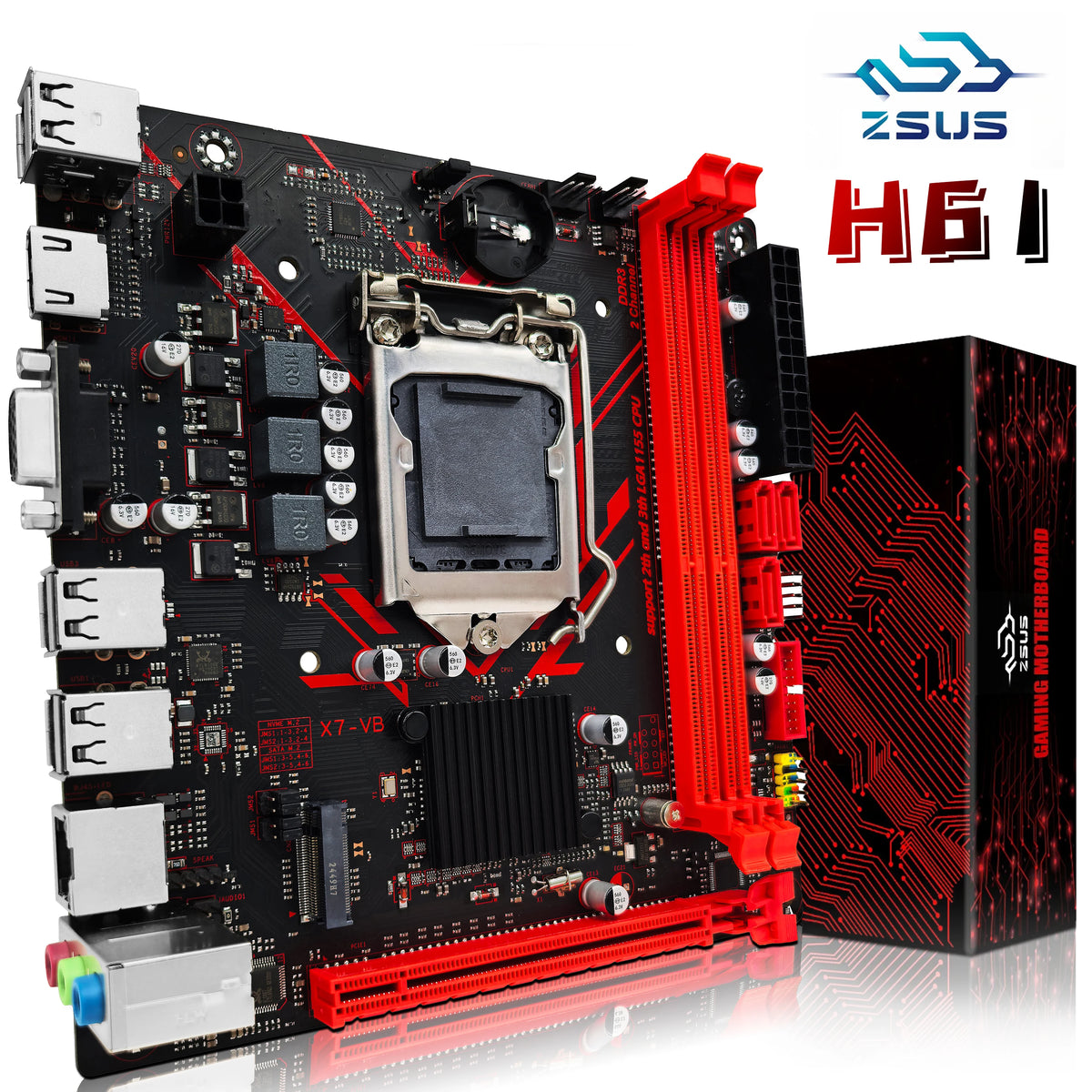

ZSUS H61 LGA 1155 DDR3 Motherboard with NVMe M.2

Build, repair or upgrade a compatible LGA 1155 desktop computer with this ZSUS H61 motherboard, designed for selected Intel Core i3, i5 and i7 processors and DDR3 system memory.

Based on the Intel H61 chipset, the motherboard features two DDR3 memory slots supporting frequencies of 1066, 1333 and 1600MHz, with a stated maximum memory capacity of 16GB. Storage connectivity includes three SATA 2.0 ports together with an NVMe M.2 interface, providing options for compatible traditional drives and M.2 solid-state storage.

For expansion, the board includes one PCIe x16 slot for a compatible graphics or expansion card. Rear connectivity includes HDMI and VGA display outputs, an RJ45 Ethernet connection and USB interfaces, making the board suitable for a variety of desktop, office, multimedia and general computing configurations.

With compact dimensions of approximately 170 × 170mm, the motherboard provides a practical platform for rebuilding or maintaining compatible LGA 1155 systems. A CPU is not included, and processor, memory, storage and other components should be checked for compatibility before installation.

Key Features

• Intel H61 chipset motherboard
• LGA 1155 processor socket
• Supports compatible Intel Core i3 processors
• Supports compatible Intel Core i5 processors
• Supports compatible Intel Core i7 processors
• 2 × DDR3 memory slots
• Supports DDR3 1066 / 1333 / 1600MHz memory
• Maximum stated RAM capacity: 16GB
• Dual-channel memory configuration
• Integrated NVMe M.2 storage interface
• 3 × SATA 2.0 ports specified in detailed product configuration
• 1 × PCIe x16 expansion slot
• Supplier lists PCIe 3.0 support
• 1 × HDMI output
• 1 × VGA output
• 1 × RJ45 Ethernet port
• 100Mbps Fast Ethernet specified by manufacturer
• USB 2.0 connectivity
• USB 3.0 support listed in product specifications
• ATX 24-pin + ATX 4-pin power connections
• Approximate motherboard size: 170 × 170mm
• Suitable for compatible desktop and server configurations
• CPU not included
• Motherboard battery is not included
• Brand: ZSUS

Package Includes

• 1 × ZSUS H61 LGA 1155 Motherboard
• 1 × SATA Cable
• 1 × I/O Shield / Motherboard Baffle
• 1 × Installation Manual
